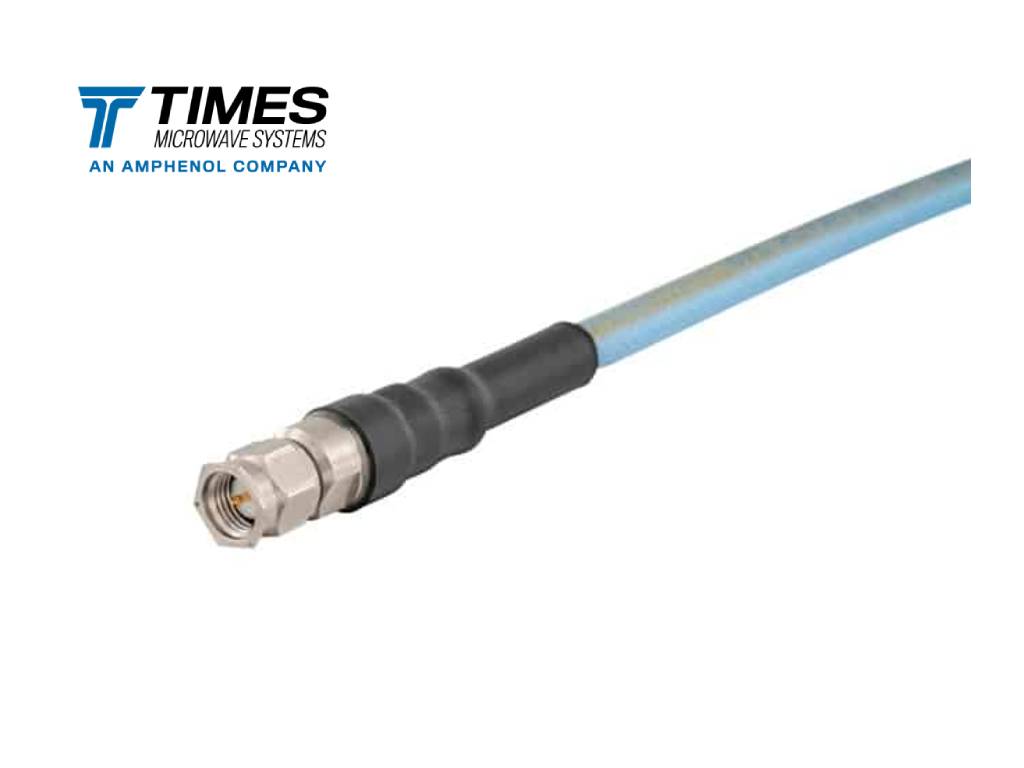

PT-210
The PhaseTrack®210 is a Standard phase-stable coax assembly featuring a proprietary fluorocarbon dielectric, TF4®, eliminating the PTFE change phase occurring around 19 ºC. PhaseTrack assemblies have the same triple-shield construction used in our popular SF®, SFT®, SilverLine®, and MilTtech® cables and are ideal for applications demanding stable phase over temperature.
Stock Code: AA-9239
PT-210
Build your Assembly
This a factory assembled custom assembly. The cable and connectors are not available for individual sale.
Specifications
| Part NumberPT-210 |
| Environment |
| JacketFEP |
| Overall Diameter (mm)5.588 |
| Overall Diameter (in)0.22 |
| Weight Kg/m0.0685 |
| Weight lb/ft0.046 |
| Operating Temp.°C (°F)-55° to 150°C (-85° to 302°F) |
| Min. Bend Radius (mm)28.575 |
| Min. Bend Radius (in)1.125 |
| Bending Moment (Nm) |
| Bending Moment (ft-lb) |
| Max Frequency (GHz)29 |
| Impedance (ohms)50 |
| Power Handling (DWV) |
Compatible with
Part Number Structure
Cable Details

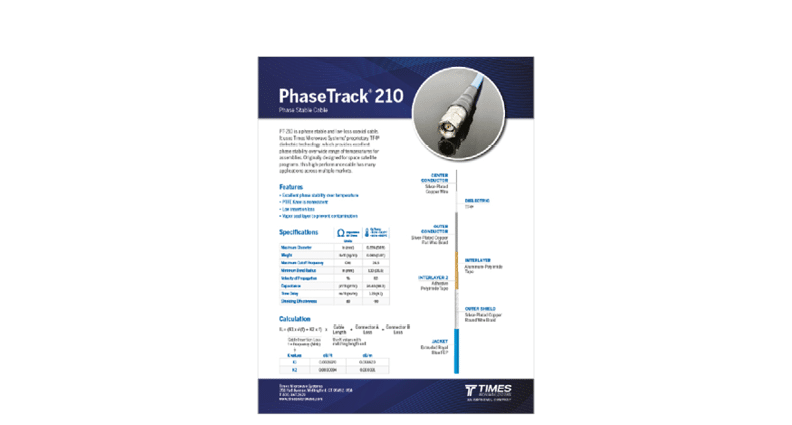

Resources
