PT-047-SP

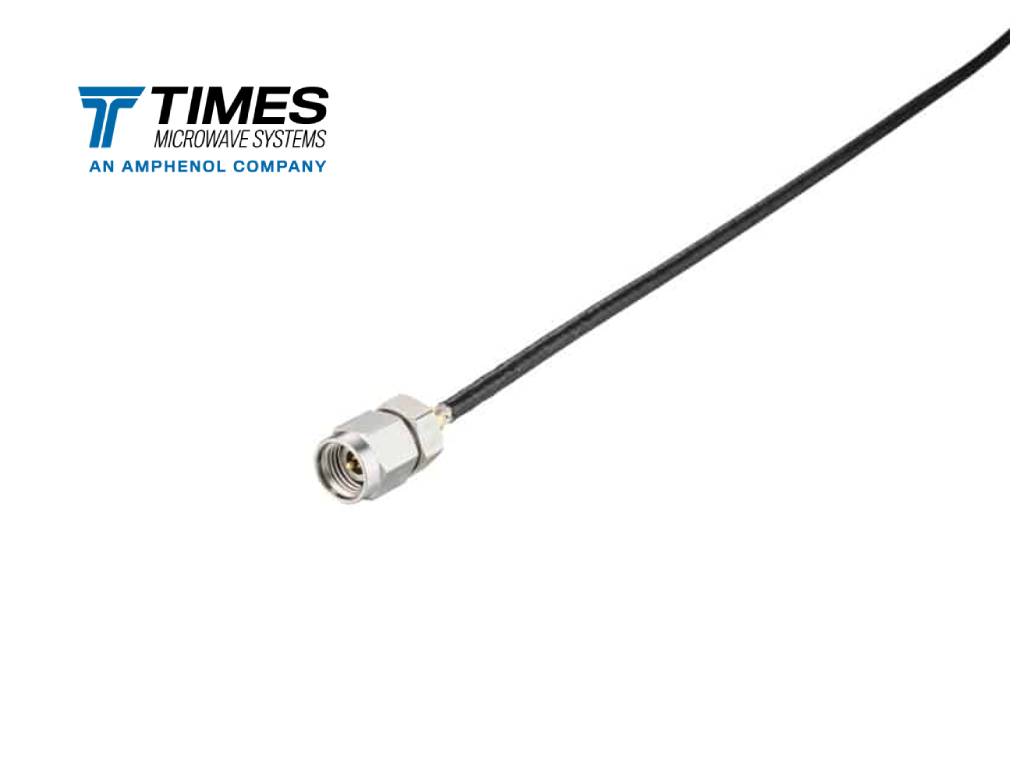

The PhaseTrack®047 SP is an Ultra-Flexible phase-stable coax assembly featuring a proprietary fluorocarbon dielectric, TF4®, eliminating the PTFE change phase occurring around 19 ºC. PhaseTrack assemblies have the same triple-shield construction used in our popular SF®, SFT®, SilverLine®, and MilTtech® cables and are ideal for applications demanding stable phase over temperature.
Stock Code: AA-12014
PT047-SP
Request a Quote
Specifications
| Part NumberPT-047-SP |
| Environment |
| JacketETFE |
| Overall Diameter (mm)1.5748 |
| Overall Diameter (in)0.062 |
| Weight Kg/m0.006 |
| Weight lb/ft0.004 |
| Operating Temp.°C (°F)-150° to 150°C (-238° to 302°F) |
| Min. Bend Radius (mm) |
| Min. Bend Radius (in)0.25 |
| Bending Moment (Nm) |
| Bending Moment (ft-lb) |
| Max Frequency (GHz) |
| Impedance (ohms)50 |
| Power Handling (DWV) |
Part Number Structure
Cable Details
