LVT-047

Levitate™ 047 is engineered to meet the modern demands of both military and commercial RF systems. Offering an extremely flexible construction with minimal signal loss, these assemblies are built to support critical RF runs both inside and outside the box. With a budget-friendly price and product available in distribution, Levitate is ideal for UAV platforms and all other applications requiring the perfect blend of cost, performance, and lead time.

LVT-047

Stock Code: LVT-047

LVT-047

Inventory Status
Distributor Qty Order

Specifications

Part NumberLVT-047
Environment
JacketFEP
Overall Diameter (mm)1.626
Overall Diameter (in)0.064
Weight Kg/m0.0068
Weight lb/ft0.0046
Operating Temp.°C (°F) -65° to 150°C
(-85° to 302°F)
Min. Bend Radius (mm)3.175
Min. Bend Radius (in)0.125
Bending Moment (Nm)
Bending Moment (ft-lb)
Max Frequency (GHz)40
Impedance (ohms)50
Power Handling (DWV)

Compatible with

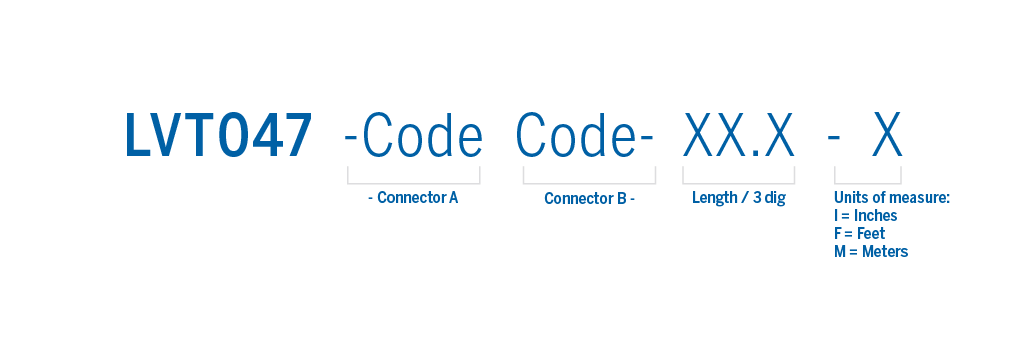

Part Number Structure

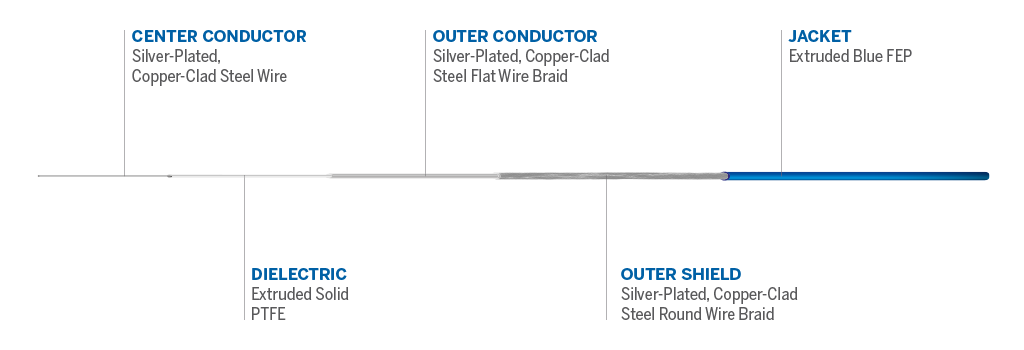

Cable Details
