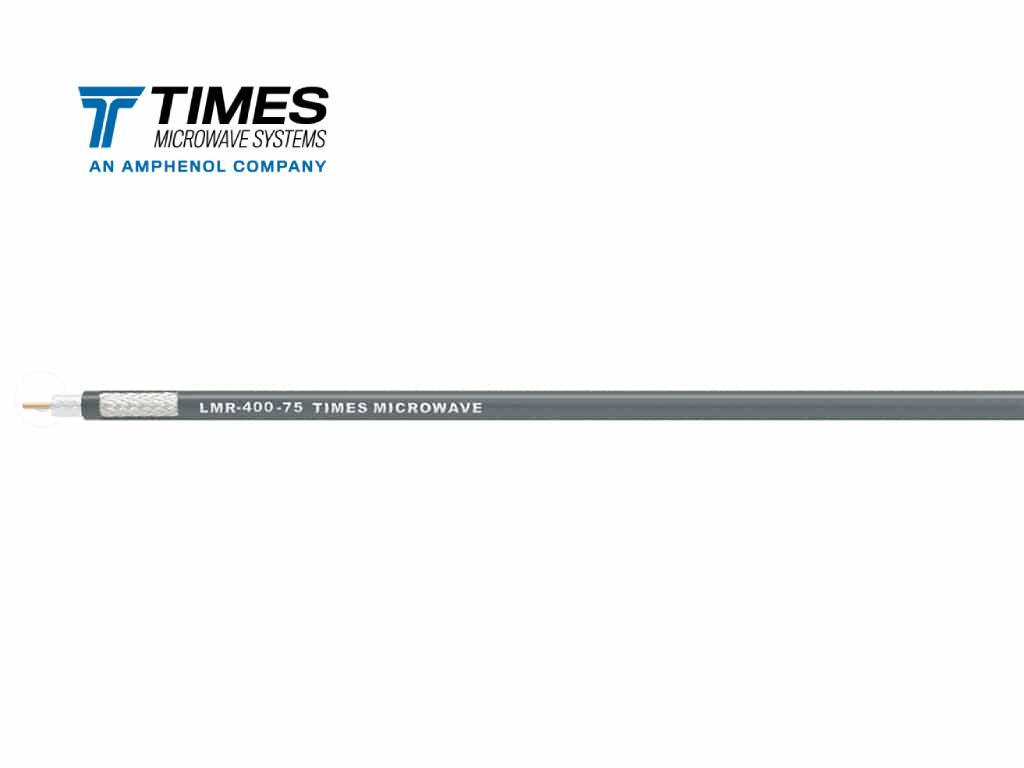

LMR-400-75-FR

LMR®-75-FR is a non-halogen (non-toxic), low smoke, fire retardant cable designed for in-building runs that can be routed anywhere except air handling plenums. LMR-75-FR is UL/NEC & CSA rated 'CMR' and 'FT4' respectively, meets FAA FAR25 requirements and is MSHA-P for mining applications.

Stock Code: 54256

LMR-400 w/non-halogen jkt, 75 Ohm, listed CMR/MPR (PCC-FT4)

Inventory Status
In Stock Qty Order
Murray-Benjamin Electric15000Buy
Microwave Components, LLC116Buy
DigiKey5000Buy
Mouser Electronics500Buy

Specifications

Part NumberLMR-400-75-FR
EnvironmentIndoor
JacketFRPE
Overall Diameter (mm)10.287
Overall Diameter (in)0.405
Weight Kg/m0.1012
Weight lb/ft0.068
Operating Temp.°C (°F)-40° to 85°C (-40° to 185°F)
Min. Bend Radius (mm)25.4
Min. Bend Radius (in)1
Bending Moment (Nm)0.68
Bending Moment (ft-lb)0.5
Max Frequency (GHz)6
Impedance (ohms)75
Power Handling (DWV)
