Understanding Attenuation in RF Coaxial Cable: Loss, Stability, and the Cut-off Frequency Limit

Key Takeaways

Attenuation is the most important performance consideration in an RF interconnect because it determines how much signal power is preserved between the source and the load.
Total attenuation is the sum of conductor loss (scales with the square root of frequency) and dielectric loss (scales linearly with frequency); dielectric loss dominates at high frequencies.
Larger cable diameter reduces attenuation, but increases weight, stiffness, and minimum bend radius. Cable selection is always a trade-off.
Attenuation uniformity is a separate and important specification: irregular attenuation responses are symptomatic of impedance discontinuities in the cable.
Long-term attenuation stability depends heavily on shield material (silver-plated > tinned > bare copper), jacket type, and protection against moisture ingress.
Always apply a temperature correction factor to published attenuation values before finalizing a cable selection for a non-ambient operating environment.
The cut-off frequency is a hard upper limit. Operating above it introduces moding that can cause severe signal suckouts, not just gradual performance degradation.

Every RF system has a link budget, a careful accounting of how much signal power is available at the source, how much is consumed by each component in the chain, and how much must arrive at the load to meet the system’s performance threshold. In that budget, the coaxial cable is always a line item with a negative sign. The question isn’t whether a cable attenuates your signal; it’s how much, and whether that loss is predictable and stable over time and temperature.

Attenuation, the measure of power lost in the cable assembly between source and load, is the most direct indicator of how much your transmission line is costing you in signal. Understanding where that loss comes from, what makes it change, and where its absolute physical limits lie is not optional knowledge for anyone responsible for selecting or specifying RF cable. This article breaks down all three.

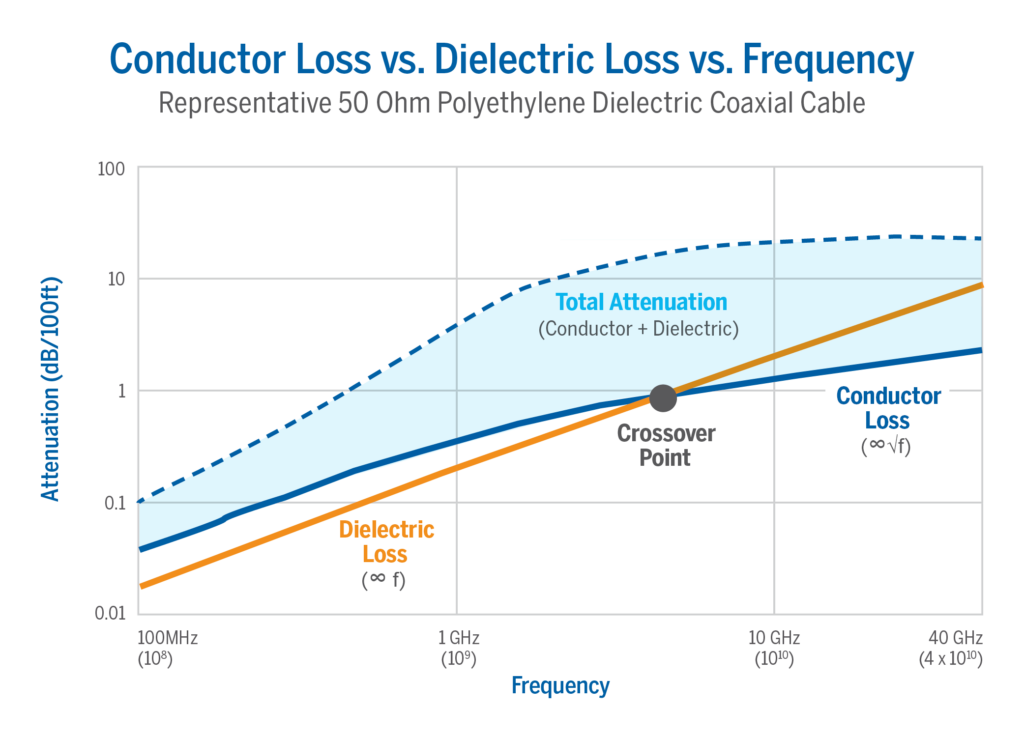

Where the Loss Comes From: Two Mechanisms, One Total

Attenuation in a coaxial cable is the sum of two distinct physical loss mechanisms: conductor loss and dielectric loss. They behave differently with respect to frequency and understanding that difference matters for cable selection.

Conductor Loss

Conductor loss arises from the electrical resistance of the center and outer conductors. Because RF energy travels primarily on the surface of the conductors rather than through their bulk, a phenomenon called the skin effect, the effective resistance of the conductor increases as frequency increases. Conductor loss scales with the square root of frequency: double the frequency and conductor loss increases by a factor of roughly 1.41.

The surface quality of the conductor matters enormously here. A rough or oxidized surface increases the effective path length the current must travel and raises resistance. This is why precision cables use smooth, highly conductive materials, and why silver plating, with its high conductivity, is standard in high-frequency applications.

Dielectric Loss

Dielectric loss arises from energy absorbed by the insulating material between the conductors. Every dielectric has a dissipation factor that describes how much electrical energy is converted to heat. Unlike conductor loss, dielectric loss scales approximately linearly with frequency, so it becomes increasingly important as frequency rises.

From an attenuation standpoint, the ideal dielectric is air because it has very low loss and allows signals to propagate at nearly the speed of light. Cable designers are therefore always trying to move closer to the electrical properties of air. PTFE offers very low loss for high-frequency applications, while foamed polyethylene incorporates air into the dielectric to lower its effective dielectric constant, reduce loss, and increase velocity of propagation.

The challenge is that adding air introduces mechanical trade-offs. More air can make the dielectric softer, increase sensitivity to moisture, and make it harder to maintain uniform impedance. Foamed polyethylene and highly expanded tape constructions can achieve lower loss, but variations in the dielectric structure can also contribute to VSWR if the geometry is not tightly controlled.

Dielectric selection is therefore a balance between attenuation, velocity, impedance consistency, and ruggedness. The same material that controls dielectric loss also directly affects signal velocity, making dielectric construction especially important in phase-sensitive applications.

The Size Rule: Why Bigger Cables Lose Less

One of the most important practical rules in cable selection follows directly from the physics above: attenuation decreases as cable diameter increases, for the same dielectric material and construction type. Larger cables have lower conductor losses because their larger conductor cross-sections reduce resistance. Dielectric loss, by contrast, is independent of cable size for the same material.

This creates a clear design principle: to minimize attenuation, maximize cable diameter within the physical constraints of the system. The trade-off is that larger cables are heavier, less flexible, and have a wider minimum bend radius, all of which matter in constrained installations. Every cable selection decision is a negotiation between electrical performance and mechanical practicality.

There’s also a hard upper limit that the size rule runs directly into: cut-off frequency decreases as cable diameter increases, which means the largest cable that minimizes your attenuation is also the cable with the smallest margin before waveguide modes become a problem.

Attenuation Uniformity: When Loss Isn’t Smooth

An often-overlooked specification is attenuation uniformity is the degree to which the cable’s attenuation changes smoothly with frequency rather than exhibiting sudden deviations. Random and periodic impedance variations along the cable length create corresponding random and periodic variations in attenuation response. The result can be narrow-band attenuation “spikes”, localized frequency bands where attenuation is substantially higher than the nominal value.

These spikes are not random noise; they are symptoms of structural problems in the cable. The connection between impedance uniformity and attenuation uniformity is direct: a physically non-uniform cable will exhibit both elevated VSWR and irregular attenuation. The two measurements tell the same underlying story from different angles.

When attenuation uniformity is a critical system requirement, cables can be procured with a specified maximum deviation from nominal across a defined frequency range. This is a tighter specification than a simple attenuation maximum and requires more careful manufacturing control to achieve.

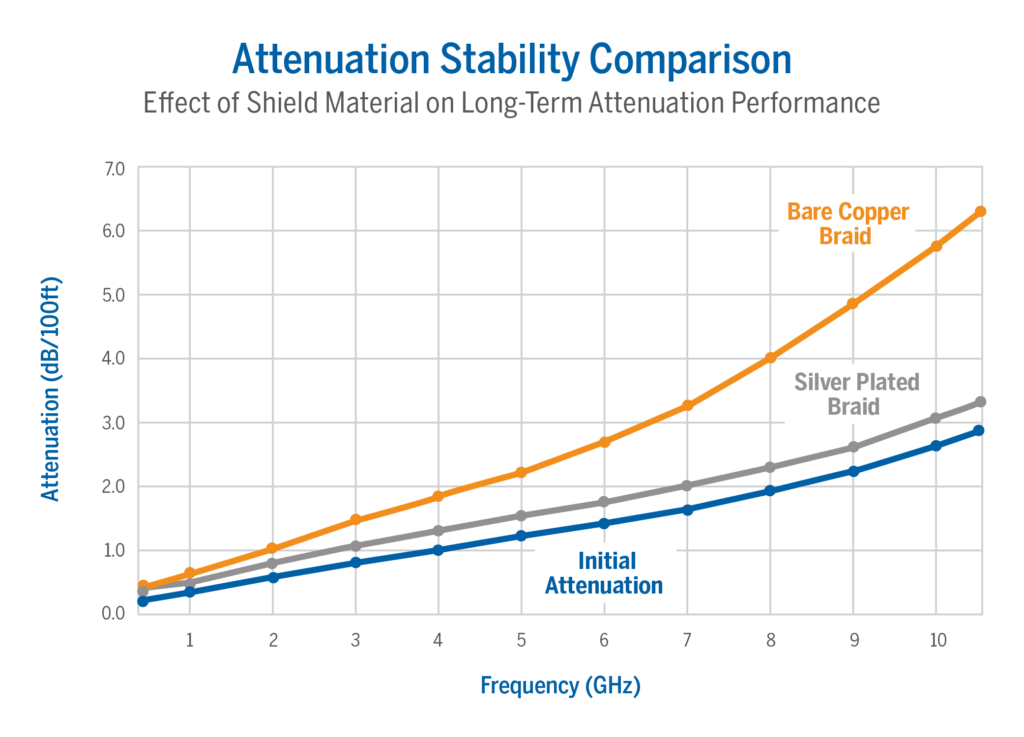

Attenuation Stability: What Happens Over Time and Use

The attenuation of braided cables can increase over time and as a result of flexing and understanding why matters for long-term system reliability. Three primary mechanisms drive attenuation degradation:

Corrosion of the braided shield: Bare and tinned copper braids are susceptible to oxidation, which increases surface resistance and raises conductor loss. Silver-plated braids are significantly more resistant to oxidation and exhibit far lower long-term degradation.
Jacket plasticizer contamination: Certain PVC jacket compounds (specifically Type I formulations) leach plasticizers into the dielectric over time, increasing the dissipation factor of the insulating material and raising dielectric loss.
Moisture penetration: Vapor can transmit through the jacket material and condense within the cable assembly, particularly in applications involving large temperature swings. Moisture in contact with the dielectric or conductors raises loss substantially.

Times Microwave Systems has decades of experience engineering cable constructions and manufacturing processes specifically to address these failure mechanisms. This includes corrosion-resistant conductor finishes, controlled jacket and dielectric materials, encapsulated braids, and hermetically sealed constructions designed to prevent moisture and contamination from changing electrical performance over time.

The LMR®-DB family and MilTech® hermetically sealed assemblies are examples of this approach. Where appropriate, nitrogen-injected foam dielectric processes are used instead of conventional chemically expanded foam, helping provide tightly controlled dielectric properties while reducing the potential for unwanted chemical residues or moisture-related degradation. These are the kinds of material and process controls that distinguish a proven cable design from a look-alike construction that may meet initial specifications but behave very differently after years of environmental exposure and use.

Temperature Correction: Attenuation Is Not a Fixed Number

Attenuation values published in cable data sheets are measured at a standard reference temperature, typically 20°C (68°F). In real-world deployments, particularly aerospace, defense, and outdoor telecommunications, the cable operates across a much wider temperature range. Elevated temperature increases conductor resistance and raises the dielectric’s power factor, both of which increase attenuation.

The practical implication is that when designing to a loss budget, engineers must apply a temperature correction factor to the published attenuation value. The procedure is straightforward: determine the maximum attenuation allowed at the highest operating frequency, divide by the temperature correction factor for the maximum operating temperature, and select the smallest cable that meets the corrected attenuation requirement. Applying this correction at the design stage prevents field failures caused by a link that works at 20°C but fails on a hot summer day or inside a high-power electronics bay.

Cut-Off Frequency: The Hard Upper Limit

Every coaxial cable has a cut-off frequency, the frequency above which it can no longer propagate energy exclusively in the desired TEM (transverse electromagnetic) mode. Operating above cut-off is not merely a performance degradation; it may cause the cable to act as a resonant cavity, producing dramatic signal “suckouts” at specific frequencies where the higher-order modes are excited.

Cut-off frequency decreases as cable diameter increases. This is the fundamental constraint that the size rule runs into: the largest cable that minimizes attenuation is also the cable with the lowest cut-off frequency. For wideband systems, this can force the selection of a smaller cable with higher loss to preserve an adequate margin below cut-off. Operating above cut-off is a category error, not a performance trade-off; the system simply stops working at those frequencies.

Cut-off frequency also has implications for how the cable handles impedance transitions. Where the line changes diameter, from a large cable to a smaller one, the transition itself must be carefully managed to avoid exciting modes at that junction. This is one of the less obvious ways that VSWR measurements can reveal problems that aren’t in the cable run itself but in how different cable sections are joined.

FAQ

What is the difference between conductor loss and dielectric loss in coaxial cable?
Conductor loss comes from the electrical resistance of the center and outer conductors and increases with the square root of frequency. Dielectric loss comes from energy absorbed by the insulating material between the conductors and increases linearly with frequency. At lower frequencies conductor loss dominates; at higher frequencies, dielectric loss becomes the larger contributor to total attenuation.

What happens if you operate a coaxial cable above its cut-off frequency?
Above cut-off, the cable can no longer propagate energy in the TEM mode it was designed for. This can cause the cable to behave as a resonant cavity, producing sharp signal suckouts at specific frequencies. This is a functional failure, not a gradual performance degradation, the system simply stops working at those frequencies.

How do I apply a temperature correction to coaxial cable attenuation?
Published attenuation values are measured at 20°C. For operation at elevated temperatures, divide the maximum allowable attenuation by the temperature correction factor corresponding to your operating temperature maximum, then select the cable that meets that corrected value. Skipping this step is one of the most common causes of link budget failures in aerospace and outdoor installations.
