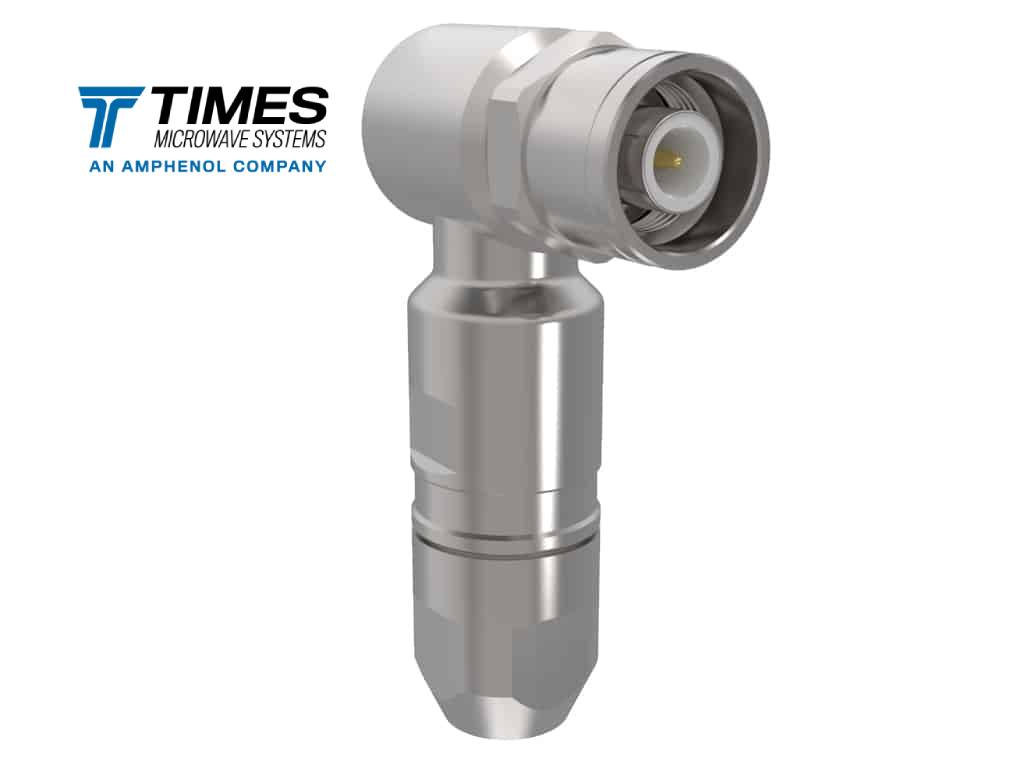

TC-600T-SCM-RA-CC
Type SC, male (plug), right angle, TC style connector for HP-600A, HPL-600, LMR®-600-LLPX®, and SFT-600 type cables.
Stock Code: 3190-6850
SC, male, right angle, with cable clamp
Request a Quote
Specifications
| Part NumberTC-600T-SCM-RA-CC |
| Stock Code3190-6850 |
| InterfaceSC |
| Gender Male (plug) |
| OrientationRight Angle |
| PIM RatingNo |
| Impedance (ohms)50 |
| Max Frequency (GHz)2.5 |
| VSWR Freq1.3 |
| VSWR Frequency (GHz)2.5 |
| Coupling NutKnurl |
| Inner Contact AttachSolder |
| Outer Contact AttachClamp |
| Body FinishAlbaloy |
| Pin FinishSilver |
| Length (mm)87.8 |
| Length (in)3.457 |
| Width (mm)24.6 |
| Width (in)0.969 |
| Weight (g) |
| Weight (lb) |
Compatible with
