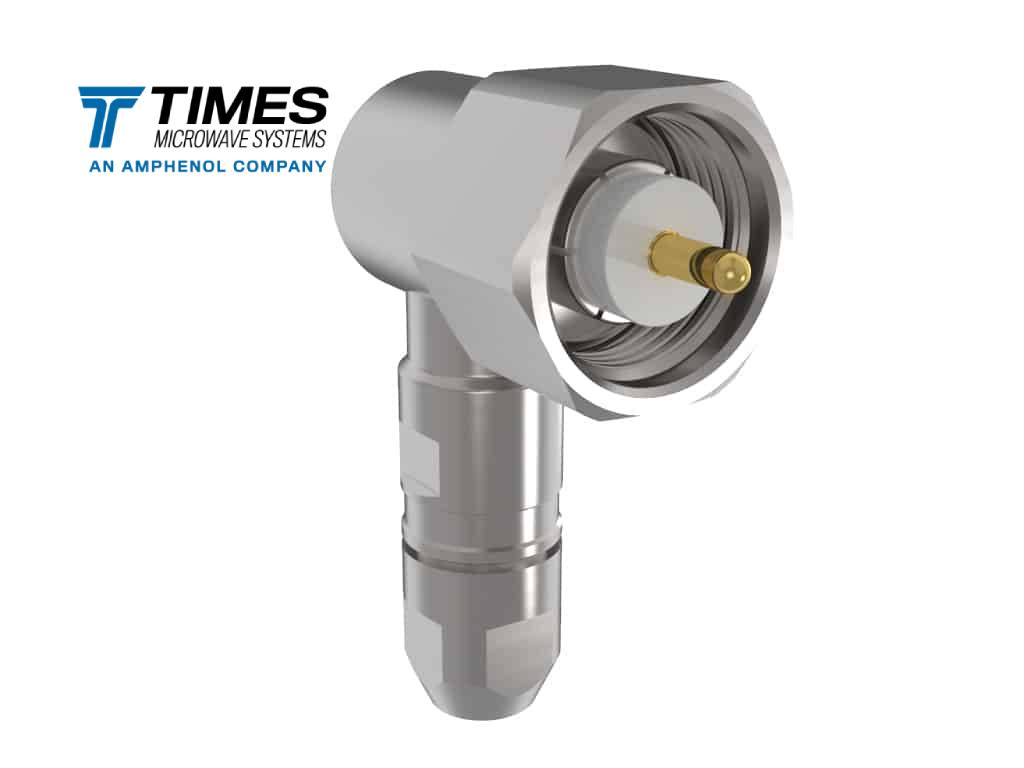

TC-600T-LCM-RA-CC
Type LC, male (plug), right angle, TC style connector for HP-600A, HPL-600, LMR®-600-LLPX®, and SFT-600 type cables.
Stock Code: 3190-6729
LC, male, right angle, with cable clamp
Request a Quote
Specifications
| Part NumberTC-600T-LCM-RA-CC |
| Stock Code3190-6729 |
| InterfaceLC |
| Gender Male (plug) |
| Orientation Right Angle |
| PIM RatingNo |
| Impedance (ohms)50 |
| Max Frequency (GHz)1 |
| VSWR Freq1.2 |
| VSWR Frequency (GHz)1 |
| Coupling NutHex |
| Inner Contact AttachSolder |
| Outer Contact AttachClamp |
| Body FinishAlbaloy |
| Pin FinishSilver |
| Length (mm)93.2 |
| Length (in)3.669 |
| Width (mm)42 |
| Width (in)1.654 |
| Weight (g) |
| Weight (lb) |
Compatible with
