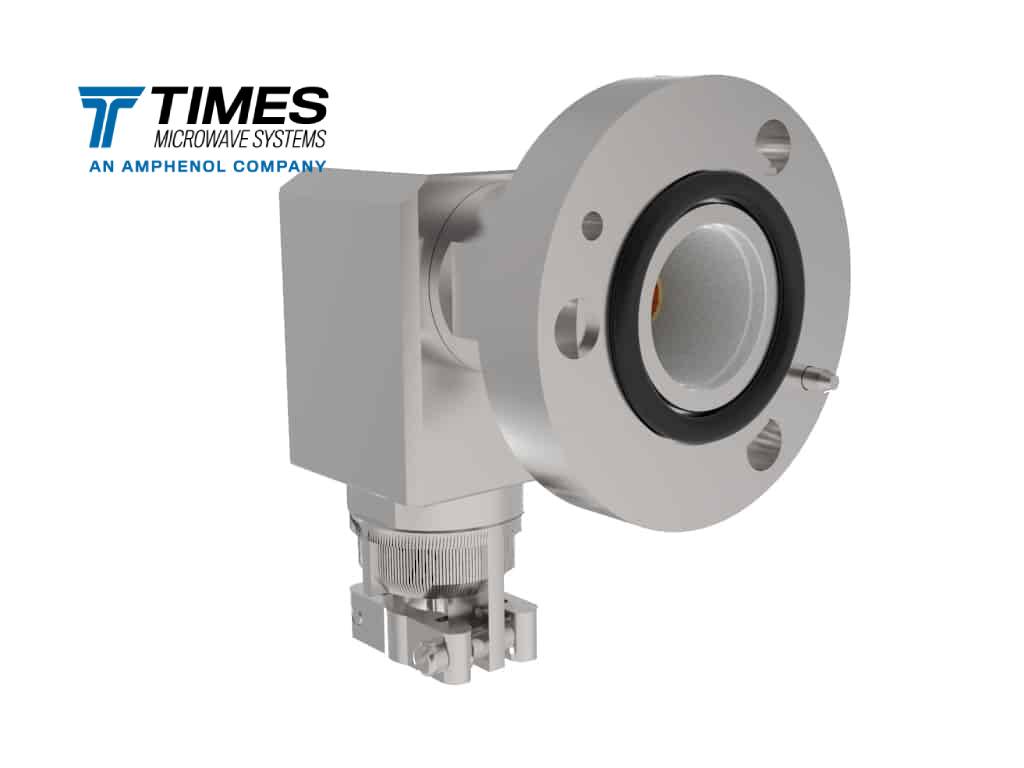

Type 7/8 EIA, flange, male (plug), right angle, TC style connector for HP-600A, HPL-600, LMR®-600-LLPX®, and SFT-600 type cables.

Stock Code: 3190-6013

7/8 EIA Flange, male, right angle, with cable clamp

Build your Assembly

This a factory assembled custom assembly. The cable and connectors are not available for individual sale.

Connector B
Design Your Assembly


Part NumberTC-600T-78EIA-RA-CL
Stock Code3190-6013
Interface7/8 EIA Flange
Gender Flange
OrientationRight Angle
PIM RatingNo
Impedance (ohms)50
Max Frequency (GHz)0.5
VSWR Freq1.15
VSWR Frequency (GHz)0.5
Coupling NutFlange
Inner Contact AttachSolder
Outer Contact AttachClamp
Body FinishAlbaloy
Pin FinishSilver
Length (mm)74
Length (in)2.913
Width (mm)56.5
Width (in)2.224
Weight (g)
Weight (lb)
