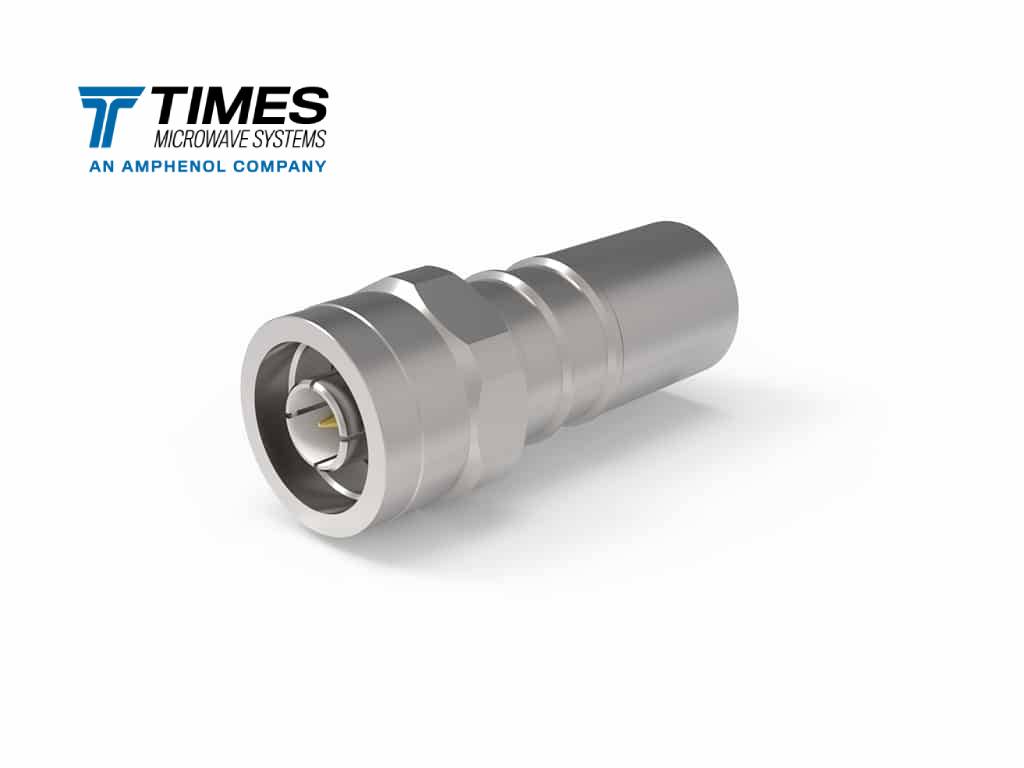

TC-600-NMH-X
N male (plug) straight TC connector for FBT-600, LMR-600, T-RAD-600, and TCOM-600 type cables.
Stock Code: 3190-2628
N-male (plug)
Inventory Status
Specifications
| Part NumberTC-600-NMH-X |
| Stock Code3190-2628 |
| InterfaceN |
| Gender Male (plug) |
| OrientationStraight |
| PIM RatingN/A |
| Impedance (ohms)50 |
| Max Frequency (GHz)6 |
| VSWR Freq<1.30:1 |
| VSWR Frequency (GHz)8 |
| Coupling NutHex/Knurl |
| Inner Contact AttachSolder |
| Outer Contact AttachCrimp |
| Body FinishAlballoy |
| Pin FinishGold |
| Length (mm)53 |
| Length (in)2.1 |
| Width (mm)23.4 |
| Width (in)0.92 |
| Weight (g)75.3 |
| Weight (lb)0.17 |
