WR-600

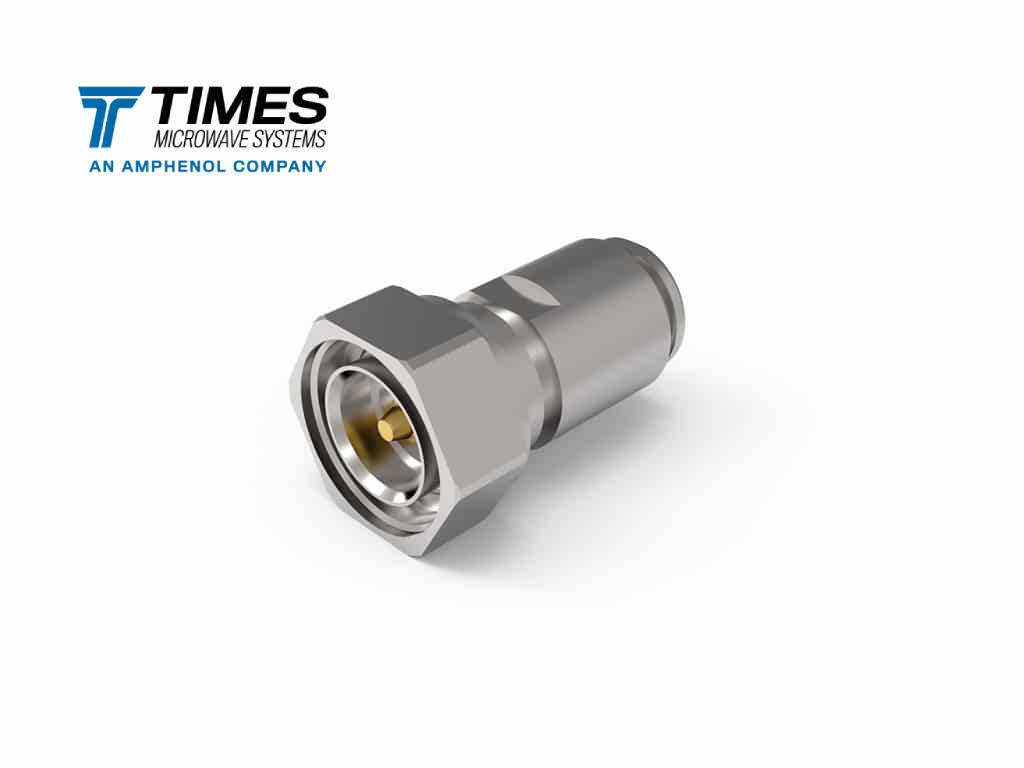

TC-600-716MC
7/16 DIN, male (plug), straight. TC style connector for FBT-600, LMR®-600, TCOM®-600, and T-RAD®-600 type cables. The TC-600-716MC features a solder-pin connector and is a perfect option for stranded center conductors. The 7/16 DIN connectors are threaded RF connectors often used for applications that require water resistance such as base stations and broadcast communication systems.
Stock Code: 3190-502
7/16 DIN male
Specifications
| Part NumberTC-600-716MC |
| Stock Code3190-502 |
| Interface7/16 DIN |
| Gender male (plug) |
| OrientationStraight |
| PIM RatingN/A |
| Impedance (ohms)50 |
| Max Frequency (GHz)2.5 |
| VSWR Freq<1.25:1 |
| VSWR Frequency (GHz)2.5 |
| Coupling NutHex |
| Inner Contact AttachSolder |
| Outer Contact AttachClamp |
| Body FinishSilver |
| Pin FinishSilver |
| Length (mm)51 |
| Length (in)2 |
| Width (mm)33 |
| Width (in)1.3 |
| Weight (g)157.4 |
| Weight (lb)0.35 |
