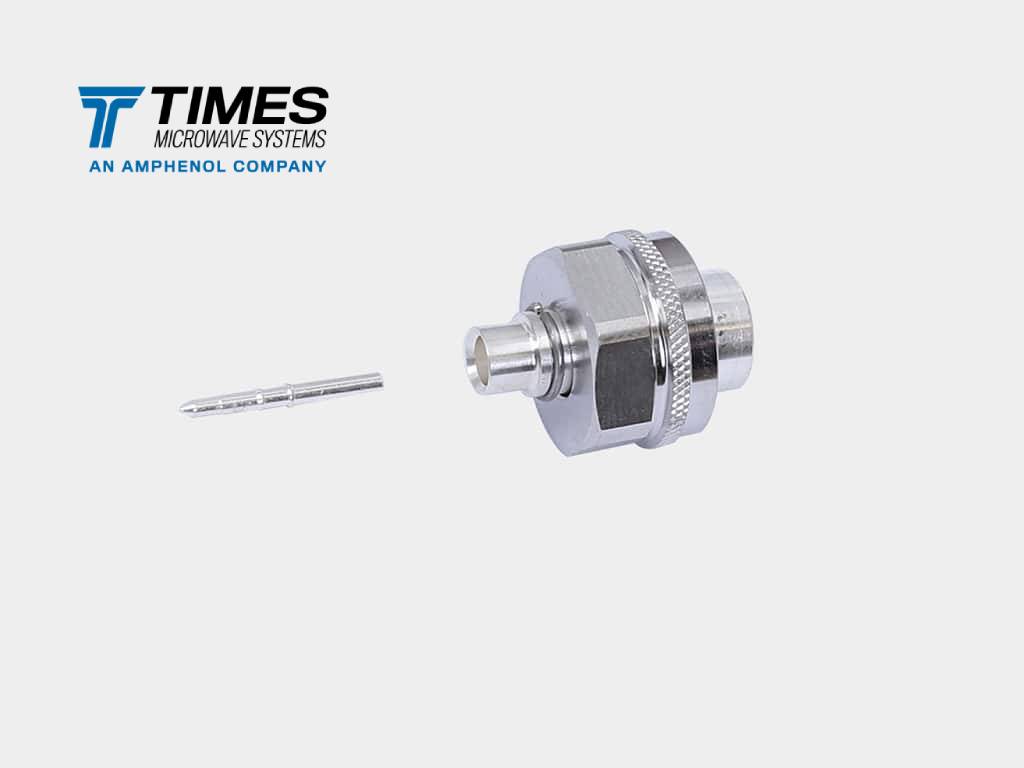

TC-402-225M-LP

Type 2.2/5, male (plug), straight, TC style connector for TFT-402 type cables.

2.2/5 male (plug), solder-on pin, induction-solder (not for field installation), bulk pack

Inventory Status

Distributor	Qty	Order

Specifications

Part NumberTC-402-225M-LP

Stock Code3190-6655

Interface2.2/5

Gender Male (plug)

OrientationStraight

PIM Rating

Impedance (ohms)50

Max Frequency (GHz)

VSWR Freq<1.3:1

VSWR Frequency (GHz)6

Coupling NutHex

Inner Contact AttachSolder

Outer Contact AttachSolder

Body FinishSilver

Pin FinishSilver

Length (mm)21.7

Length (in)0.85

Width (mm)16.9

Width (in)0.67

Weight (g)11

Weight (lb)0.024
