CST-400

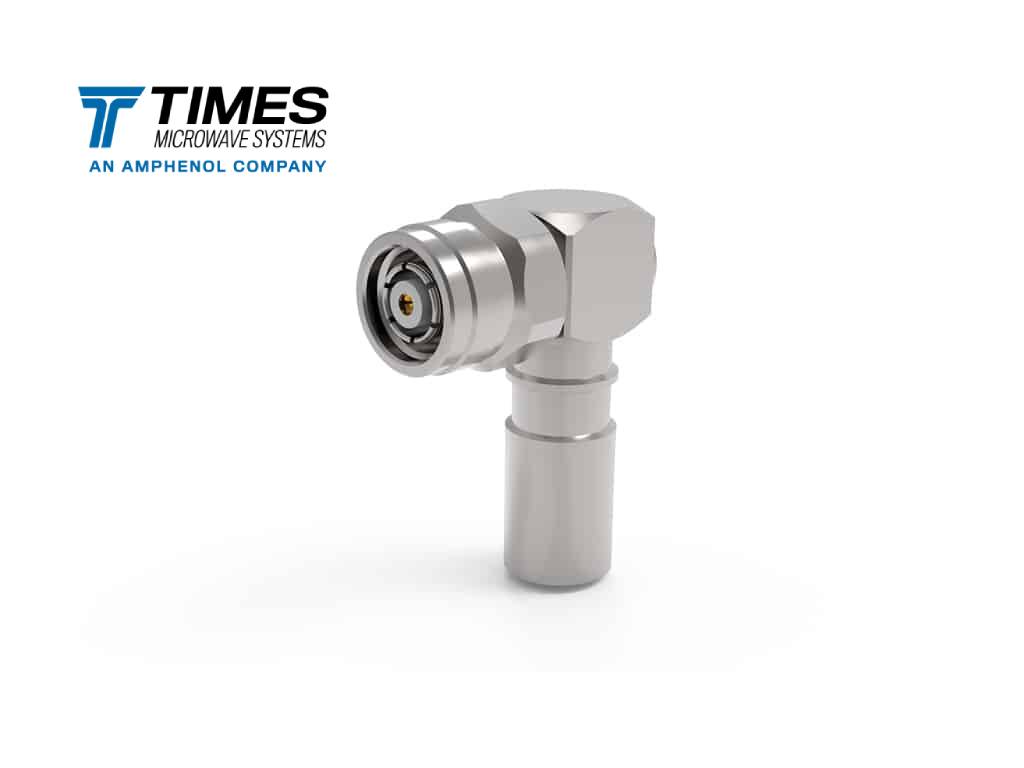

TC-400-TM-RP-RA-D
Type TNC, male (plug), right angle, TC style connector for FBT-400, LMR®-400, TCOM®-400, and T-RAD®-400-FR type cables. The TC-400-TM-RP-RA-D features a solder-pin connector and is a perfect option for stranded center conductors. The TNC is a miniature, threaded, weatherproof connector with a contact design similar to a BNC series and a higher frequency performance.
Stock Code: 3190-6147
TNC-male (plug)
Inventory Status
| Distributor | Qty | Order |
Specifications
| Part NumberTC-400-TM-RP-RA-D |
| Stock Code3190-6147 |
| InterfaceTNC |
| Gender Male (plug) |
| OrientationRight Angle |
| PIM RatingN/A |
| Impedance (ohms)50 |
| Max Frequency (GHz)6 |
| VSWR Freq<1.35:1 |
| VSWR Frequency (GHz)6 |
| Coupling NutHex/Knurl |
| Inner Contact AttachSolder |
| Outer Contact AttachCrimp |
| Body FinishAlballoy |
| Pin FinishGold |
| Length (mm)36 |
| Length (in)1.4 |
| Width (mm)30.3 |
| Width (in)1.2 |
| Weight (g)59 |
| Weight (lb)0.13 |
Compatible with
Tools and Accessories
Grounding Kits
Hoisting Grips
Weather Seal Strain Relief Boots
CCT-02
CCT-03
