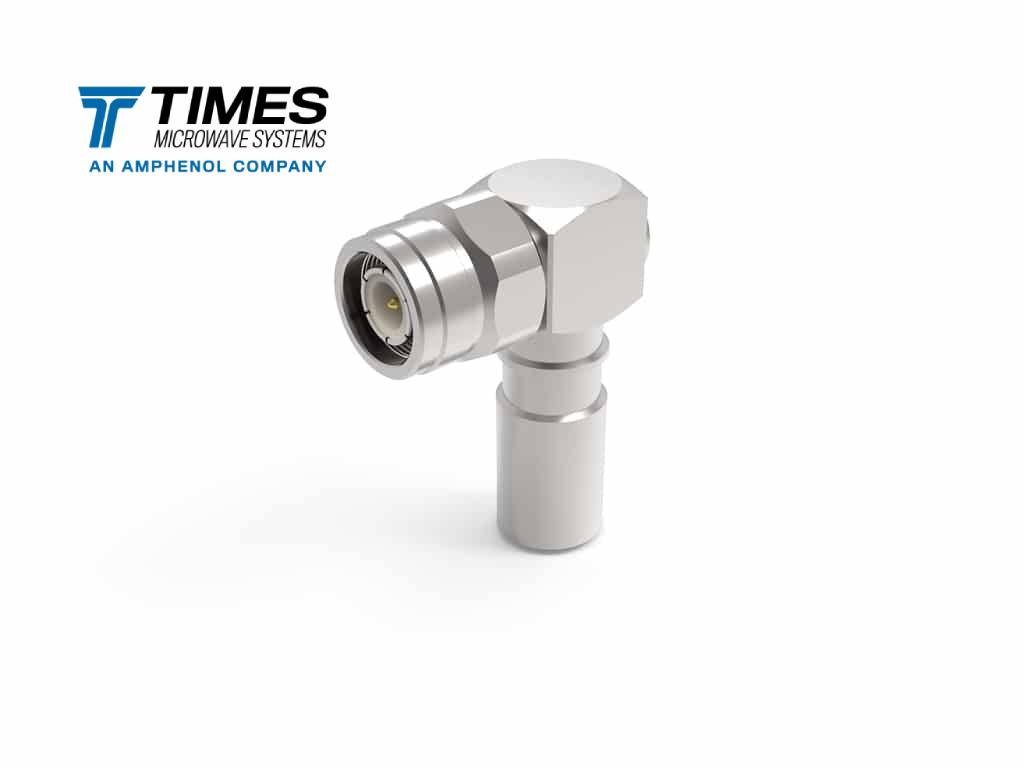

TC-400-TM-RA-D

TNC male (plug) right angle TC connector for FBT-400, LMR®-400, TCOM®-400, and T-RAD®-400-FR type cables. The TC-400-TM-RA-D features a solder-pin connector and is a perfect option for stranded center conductors. The TNC is a miniature, threaded, weatherproof connector with a contact design similar to a BNC series and a higher frequency performance.

Stock Code: 3190-2671

TNC male (plug)

Inventory Status
Distributor Qty Order
PEI-Genesis3Buy
Talley19Buy
Interstate Connecting Components40Buy
Heilind Electronics40Buy
CDM Electronics1,024Buy
Microwave Components, LLC83Buy
DigiKey98Buy
Mouser Electronics16Buy
TTI12Buy

Specifications

Part NumberTC-400-TM-RA-D
Stock Code3190-2671
InterfaceTNC
Gender Male (plug)
OrientationRight Angle
PIM RatingN/A
Impedance (ohms)50
Max Frequency (GHz)6
VSWR Freq<1.35:1
VSWR Frequency (GHz)6
Coupling NutHex/Knurl
Inner Contact AttachSolder
Outer Contact AttachCrimp
Body FinishAlballoy
Pin FinishGold
Length (mm)35
Length (in)1.4
Width (mm)35.8
Width (in)1.41
Weight (g)59
Weight (lb)0.13
