CCT-02
Specifications

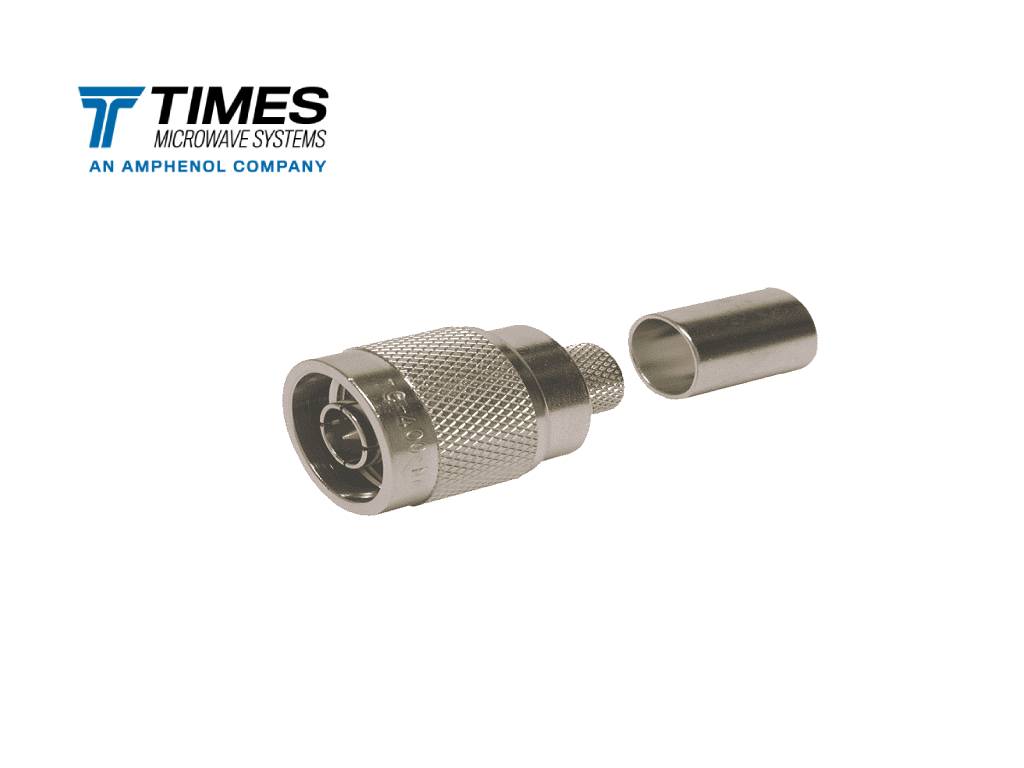

| Part NumberTC-400-NM |
| Stock Code3190-188 |
| InterfaceN |
| Gender Male (plug) |
| Orientation Straight |
| PIM Rating |
| Impedance (ohms)50 |
| Max Frequency (GHz)2.5 |
| VSWR Freq<1.25:1 |
| VSWR Frequency (GHz)2.5 |
| Coupling NutKnurl |
| Inner Contact AttachSolder |
| Outer Contact AttachCrimp |
| Body FinishNickel |
| Pin FinishGold |
| Length (mm)38 |
| Length (in)1.5 |
| Width (mm)19.1 |
| Width (in)0.75 |
| Weight (g)40.8 |
| Weight (lb)1.09 |
Compatible with
Tools and Accessories
CCT-03
Cold Shrink Weatherproofing
CST-400
CT-U
TK-400EZ
Weather Seal Strain Relief Boots
