CST-400
TC-400-HNM-RA

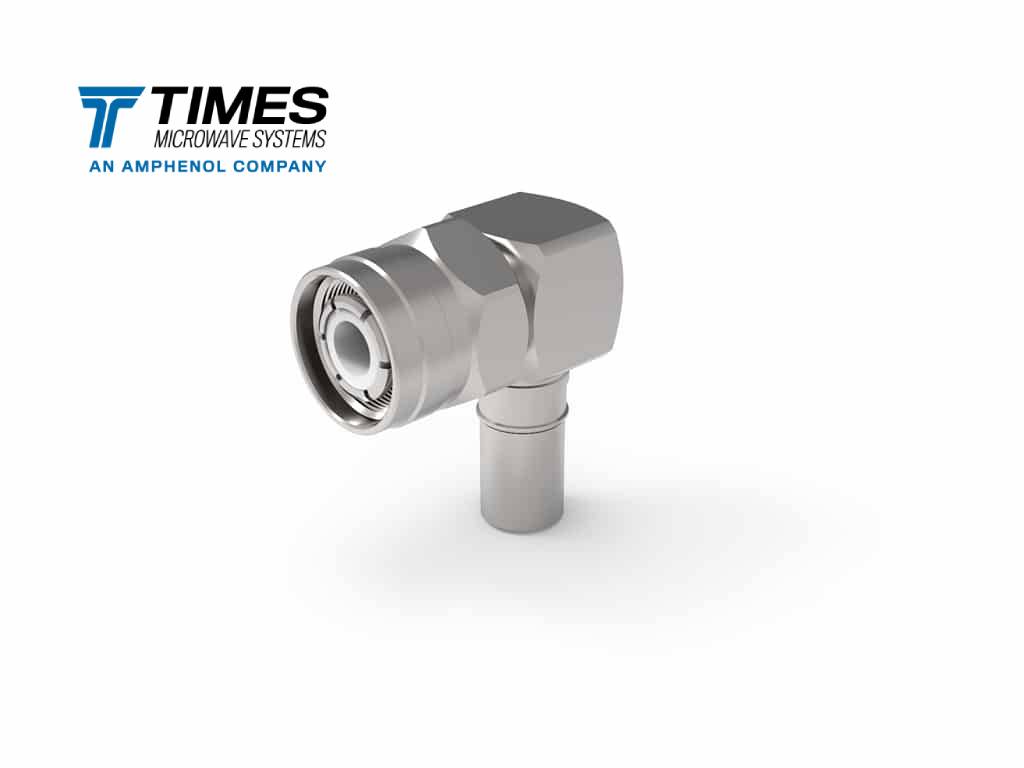

HN male (plug) right angle TC connector for FBT-400, LMR®-400, TCOM®-400, and T-RAD®-400-FR type cables.
Stock Code: 3190-2541
HN-male (plug)
Inventory Status
| Distributor | Qty | Order |
| Microwave Components, LLC | 1 | Buy |
Specifications
| Part NumberTC-400-HNM-RA |
| Stock Code3190-2541 |
| InterfaceHN |
| Gender Male (plug) |
| OrientationRight Angle |
| PIM RatingN/A |
| Impedance (ohms)50 |
| Max Frequency (GHz)3 |
| VSWR Freq<1.2:1 |
| VSWR Frequency (GHz)2.5 |
| Coupling NutHex/Knurl |
| Inner Contact AttachSolder |
| Outer Contact AttachCrimp |
| Body FinishAlballoy |
| Pin FinishGold |
| Length (mm)41.4 |
| Length (in)1.6 |
| Width (mm)39.6 |
| Width (in)1.56 |
| Weight (g)90 |
| Weight (lb)0.2 |
Compatible with
Tools and Accessories
Grounding Kits
Hoisting Grips
Weather Seal Strain Relief Boots
CCT-02
CCT-03
