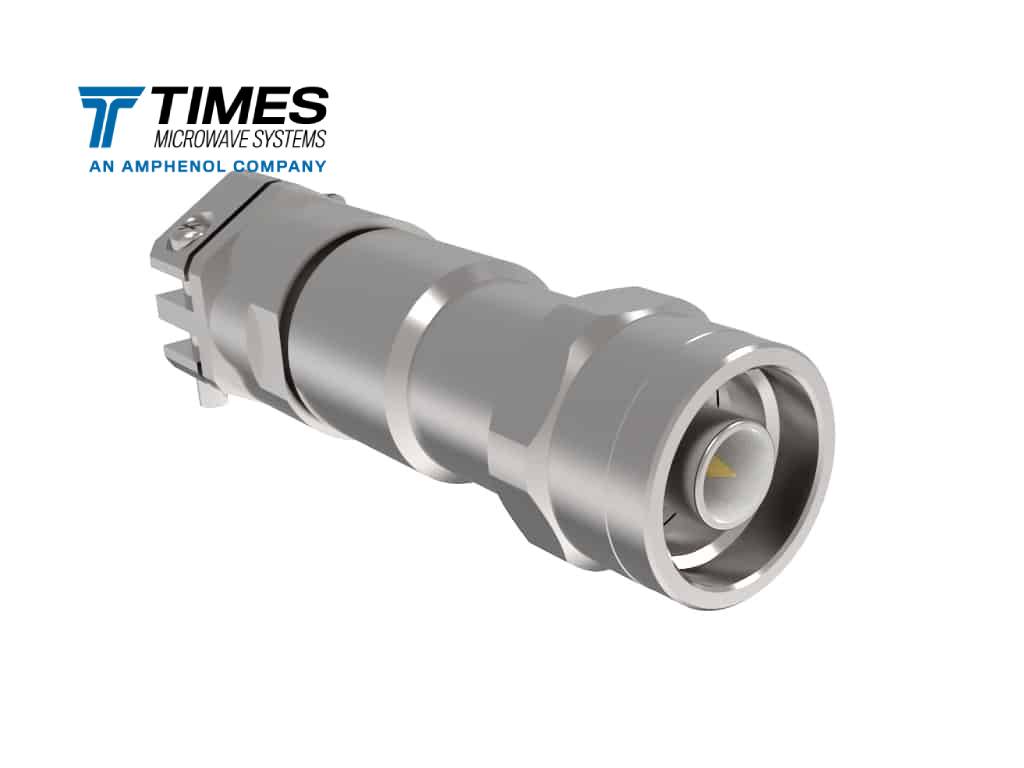

TC-393-NM-CL
Type N, male (plug), straight, TC style connector for HPL-393, RG-393-NPP-SN, RG-213, RG-223, SFT-393, and SFT-304 type cables.
Stock Code: 3190-2745
N, male, straight, with cable clamp
Request a Quote
Specifications
| Part NumberTC-393-NM-CL |
| Stock Code3190-2745 |
| InterfaceN |
| Gender Male (plug) |
| OrientationStraight |
| PIM RatingNo |
| Impedance (ohms)50 |
| Max Frequency (GHz)0.1 |
| VSWR Freq |
| VSWR Frequency (GHz)0.1 |
| Coupling NutHex |
| Inner Contact AttachSolder |
| Outer Contact AttachClamp |
| Body FinishAlbaloy |
| Pin FinishGold |
| Length (mm)70.2 |
| Length (in)2.764 |
| Width (mm) |
| Width (in) |
| Weight (g) |
| Weight (lb) |
