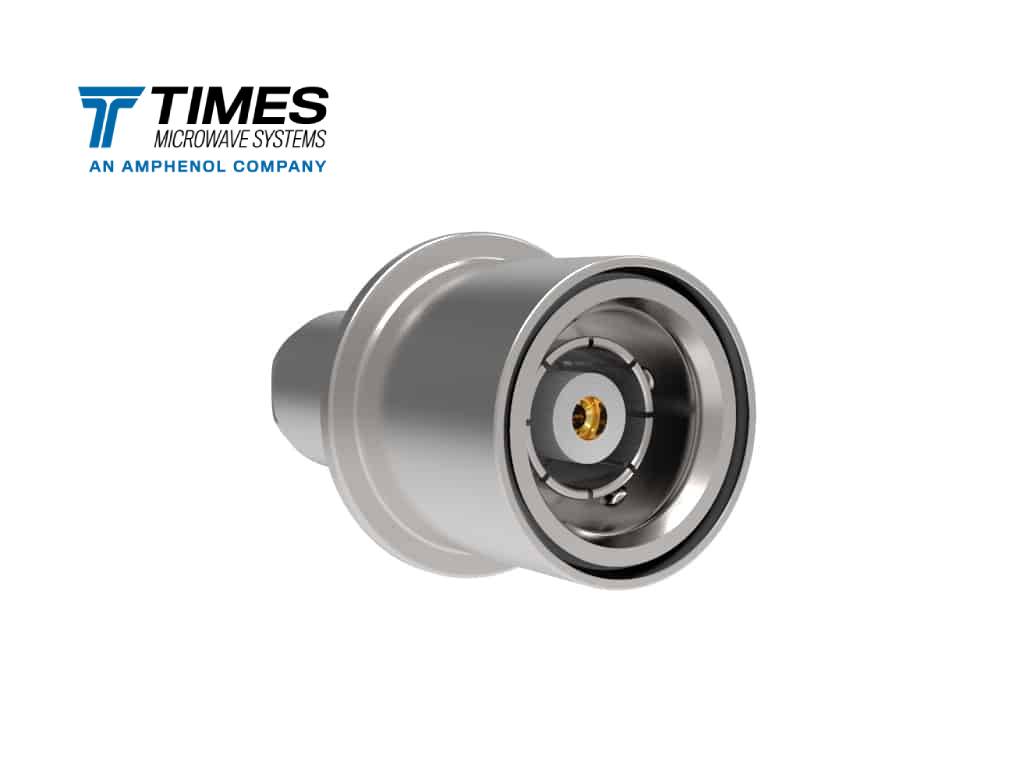

TC-393-MQM-RP-CC
Type MPQD, male (plug), reverse polarity, TC style connector for HPL-393, RG-393-NPP-SN, RG-213, RG-59, and SFT-393 type cables.
Stock Code: 3190-6639
MPQD, male, reverse polarity, with cable clamp
Request a Quote
Specifications
| Part NumberTC-393-MQM-RP-CC |
| Stock Code3190-6639 |
| InterfaceMPQD |
| Gender Male (plug) |
| Orientation Reverse polarity |
| PIM RatingNo |
| Impedance (ohms)50 |
| Max Frequency (GHz)1 |
| VSWR Freq1.2 |
| VSWR Frequency (GHz)1 |
| Coupling Nut |
| Inner Contact AttachSolder |
| Outer Contact AttachClamp |
| Body FinishAlbaloy |
| Pin FinishGold |
| Length (mm)64.43 |
| Length (in)2.537 |
| Width (mm)38.1 |
| Width (in)1.5 |
| Weight (g) |
| Weight (lb) |
Compatible with
