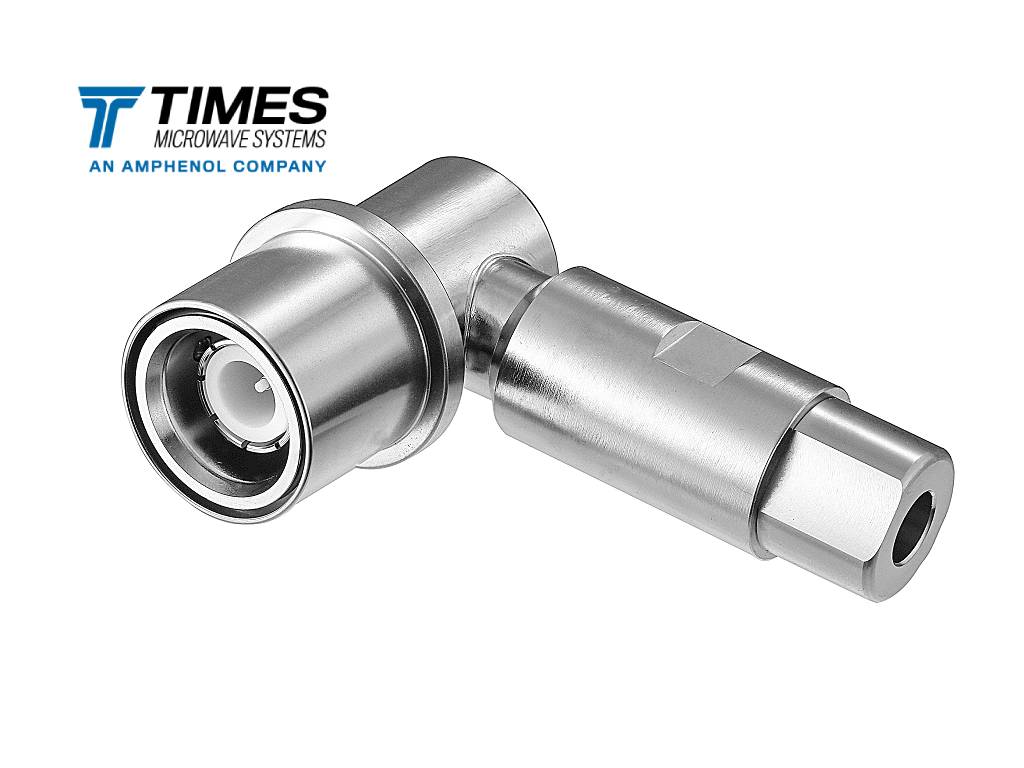

Type MPQD, male (plug), right angle, TC style connector for HPL-393, RG-393-NPP-SN, QEAM-810, RG-213, RG-59, and SFT-393 type cables.

Stock Code: 3190-6576

MPQD, male, right angle, with cable clamp

Build your Assembly

This a factory assembled custom assembly. The cable and connectors are not available for individual sale.

Connector B
Design Your Assembly


Part NumberTC-393-MQM-RA-CC
Stock Code3190-6576
Gender male (plug)
OrientationRight Angle
PIM RatingNo
Impedance (ohms)50
Max Frequency (GHz)1
VSWR Freq1.2
VSWR Frequency (GHz)1
Coupling Nut
Inner Contact AttachSolder
Outer Contact AttachClamp
Body FinishAlbaloy
Pin FinishGold
Length (mm)96.83
Length (in)3.812
Width (mm)37.9
Width (in)1.492
Weight (g)
Weight (lb)
