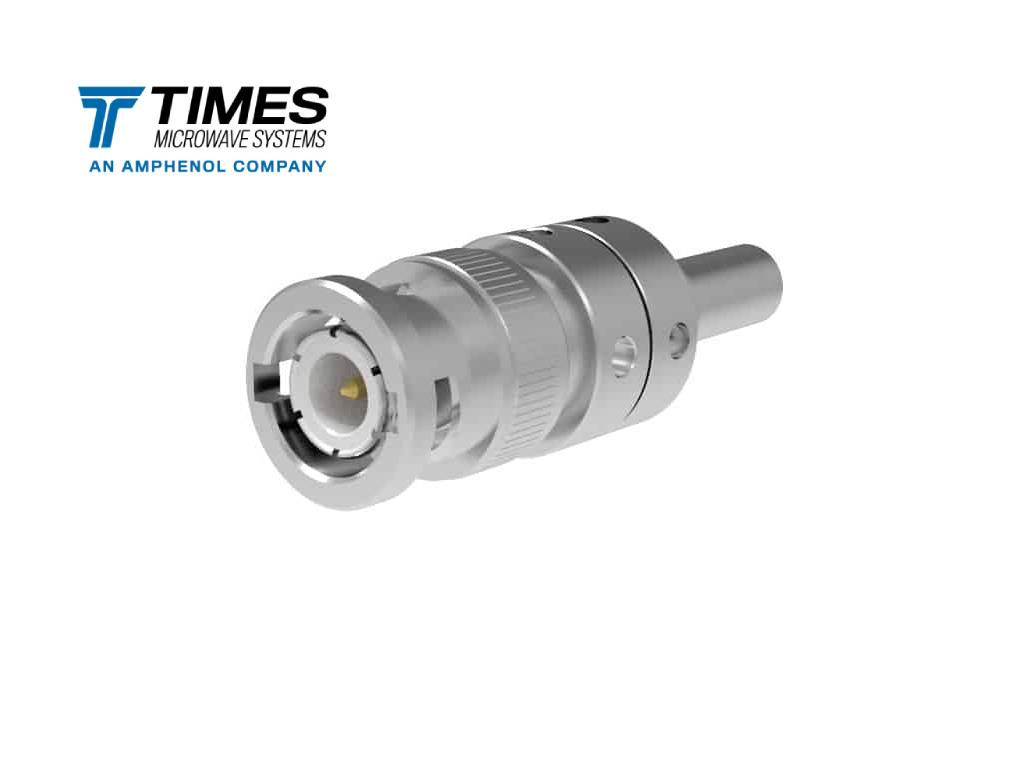

TC-3520-BM-X

Type BNC, male (plug), straight, TC style connector for TCA352001.

Stock Code: 3190-8081

Straight BNC male (plug) connector for TCA assemblies

Request a Quote

Specifications

Part NumberTC-3520-BM-X
Stock Code3190-8081
InterfaceBNC
Gender Male (plug)
OrientationStraight
PIM Rating
Impedance (ohms)50
Max Frequency (GHz)
VSWR Freq<1.3:1
VSWR Frequency (GHz)6
Coupling NutKnurl
Inner Contact AttachSolder
Outer Contact AttachCrimp
Body FinishBi-Metal
Pin FinishGold
Length (mm)43.8
Length (in)1.72
Width (mm)15
Width (in)0.59
Weight (g)25.38
Weight (lb)0.06

Compatible with
