TC-3116-BM-RA-X

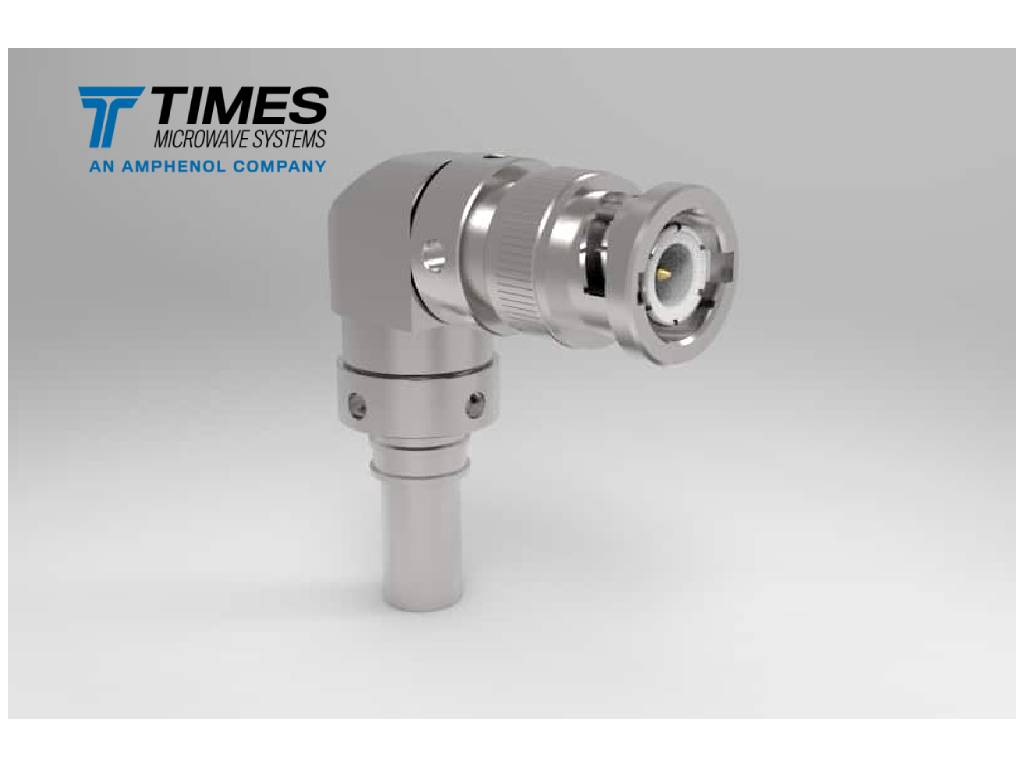

Type BNC, male (plug), right angle, TC style connector for TCA311601. The TC-3116-BM-RA-X features a solder-pin connector and is a perfect option for stranded center conductors. BNC connectors are a classic, dependable design, suited to accommodate a large variety of RG and industry-standard coaxial cables, in a variety of termination styles. Its bayonet-style coupling mechanism enables quick-connect and disconnect with positive locking. Mating is achieved with just a quarter-turn of the coupling nut.

Stock Code: 3190-8088

Right Angle BNC male (plug) connector for TCA assemblies

Build your Assembly

This a factory assembled custom assembly. The cable and connectors are not available for individual sale.

TC-3116-BM-RA-X
Cable
Connector B
Design Your Assembly

Specifications

Part NumberTC-3116-BM-RA-X
Stock Code3190-8088
InterfaceBNC
Gender male (plug)
OrientationRight Angle
PIM RatingN/A
Impedance (ohms)50
Max Frequency (GHz)
VSWR Freq<1.3:1
VSWR Frequency (GHz)6
Coupling NutKnurl
Inner Contact AttachSolder
Outer Contact AttachCrimp
Body FinishBi-Metal
Pin FinishGold
Length (mm)39.75
Length (in)1.56
Width (mm)37.7
Width (in)1.48
Weight (g)44.29
Weight (lb)0.1
