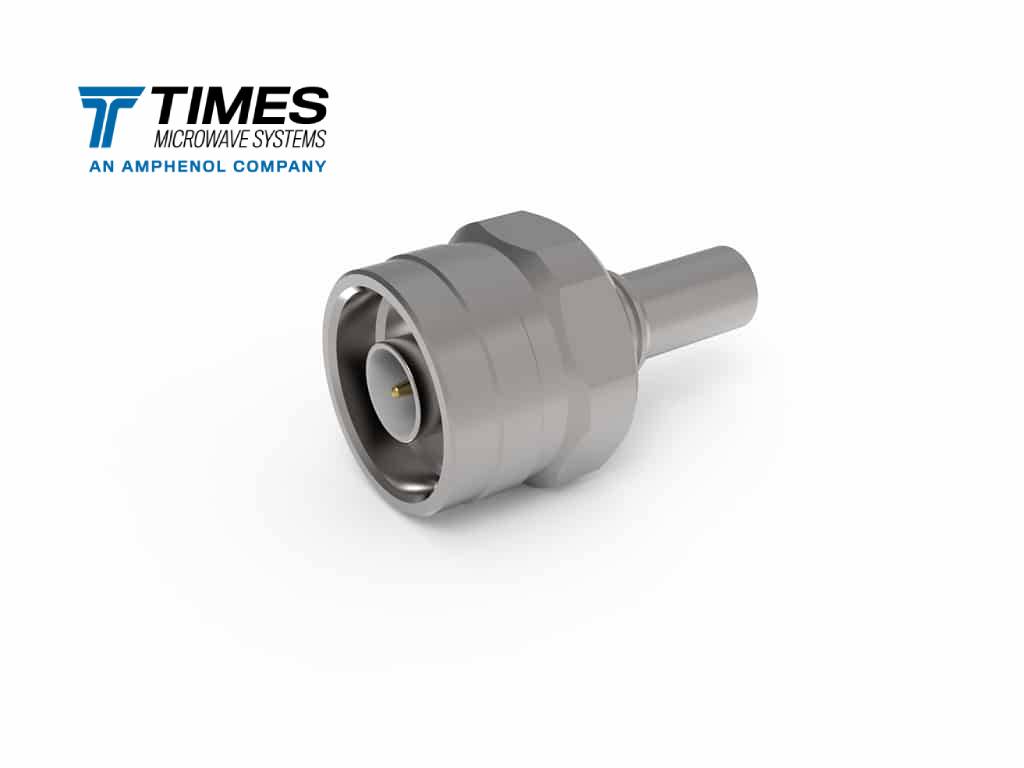

TC-240-NMH-X

Type N, male (plug), straight, TC style connector for FBT-240, LMR-240, and TCOM-240 type cables. The TC-240-NMH-X features a solder-pin connector and is a perfect option for stranded center conductors. The Type N is a durable, weatherproof, medium-size RF connector designed for systems where excellent RF and mechanical performance is critical. They feature a threaded coupling mechanism and are fully interchangeable with N-Type connectors made to the MIL-C-39012 specification.

Stock Code: 3190-6381

N-male (plug)

Inventory Status
Distributor Qty Order
PEI-Genesis800Buy
Talley659Buy
Interstate Connecting Components344Buy
Heilind Electronics344Buy
FDH Electronics1Buy
Microwave Components, LLC975Buy
East Coast Microwave1,508Buy
TTI110Buy
Mouser Electronics2,633Buy
RS17Buy
DigiKey1,878Buy

Specifications

Part NumberTC-240-NMH-X
Stock Code3190-6381
InterfaceN
Gender Male (plug)
OrientationStraight
PIM Rating
Impedance (ohms)50
Max Frequency (GHz)6
VSWR Freq<1.30:1
VSWR Frequency (GHz)6
Coupling NutHex/Knurl
Inner Contact AttachSolder
Outer Contact AttachCrimp
Body FinishAlballoy
Pin FinishGold
Length (mm)35.4
Length (in)1.39
Width (mm)22
Width (in)0.87
Weight (g)34.4
Weight (lb)0.08
