CST-240A
TC-240-FMH-75

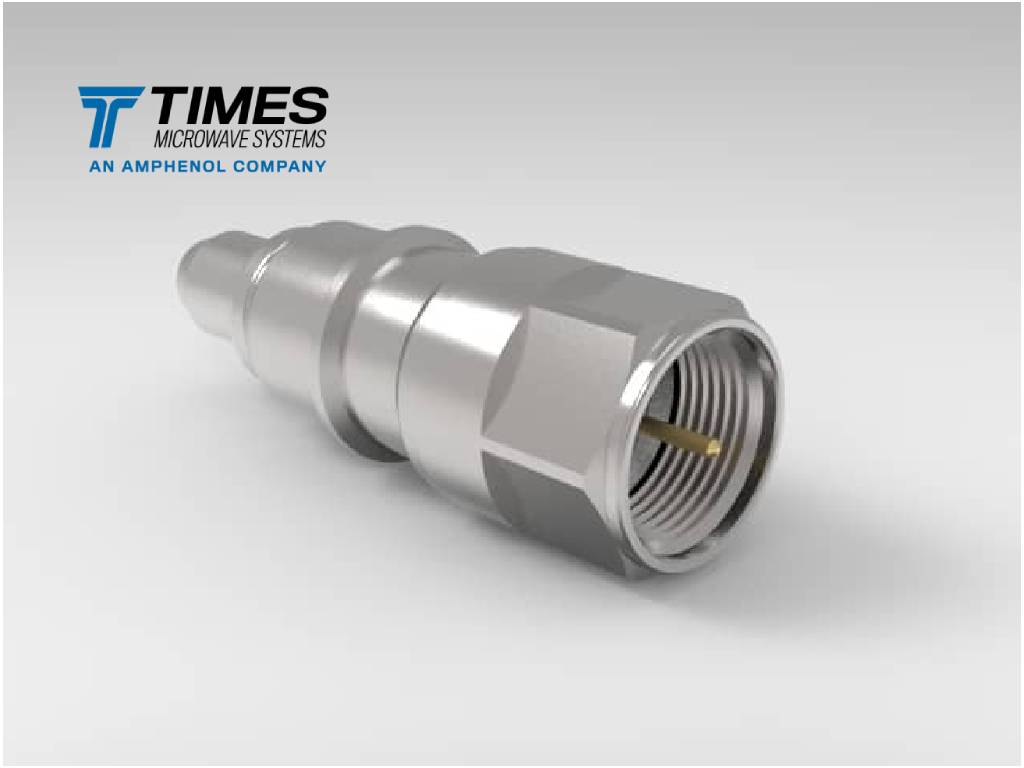

F male (plug) straight TC connector for LMR®-240-75 type cables.
Stock Code: 3190-1483
F Male (plug)
Inventory Status
| Distributor | Qty | Order |
| Mouser Electronics | 20 | Buy |
Specifications
| Part NumberTC-240-FMH-75 |
| Stock Code3190-1483 |
| InterfaceF |
| Gender Female (jack) |
| Orientation Straight |
| PIM RatingN/A |
| Impedance (ohms)75 |
| Max Frequency (GHz)2 |
| VSWR Freq<1.25:1 |
| VSWR Frequency (GHz)2.5 |
| Coupling NutHex |
| Inner Contact AttachSolder-on |
| Outer Contact AttachCrimp |
| Body FinishNickel |
| Pin FinishGold |
| Length (mm)43.2 |
| Length (in)1.7 |
| Width (mm)14.2 |
| Width (in)0.56 |
| Weight (g)7.3 |
| Weight (lb)0.016 |
Compatible with
Tools and Accessories
Grounding Kits
CCT-02
CCT-03
