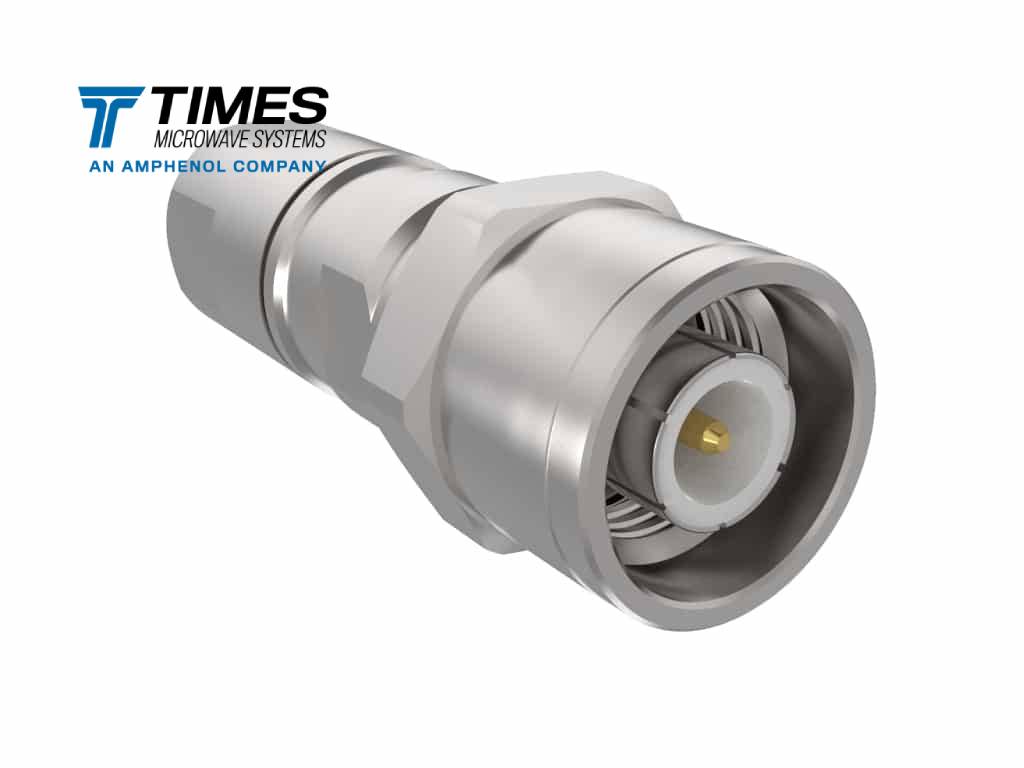

TC-214P-SCM-CC
Type SC, male (plug), straight, TC style connector for HPL-393, RG-393-NPP-SN, RG-213, RG-59, and SFT-393 type cables.
Stock Code: 3190-6869
SC, male, straight, with cable clamp
Request a Quote
Specifications
| Part NumberTC-214P-SCM-CC |
| Stock Code3190-6869 |
| InterfaceSC |
| Gender Male (plug) |
| OrientationStraight |
| PIM RatingNo |
| Impedance (ohms)50 |
| Max Frequency (GHz)2.5 |
| VSWR Freq1.3 |
| VSWR Frequency (GHz)2.5 |
| Coupling Nut |
| Inner Contact AttachSolder |
| Outer Contact AttachClamp |
| Body FinishAlbaloy |
| Pin FinishGold |
| Length (mm)66.5 |
| Length (in)2.618 |
| Width (mm)24.6 |
| Width (in)0.969 |
| Weight (g) |
| Weight (lb) |
Compatible with
