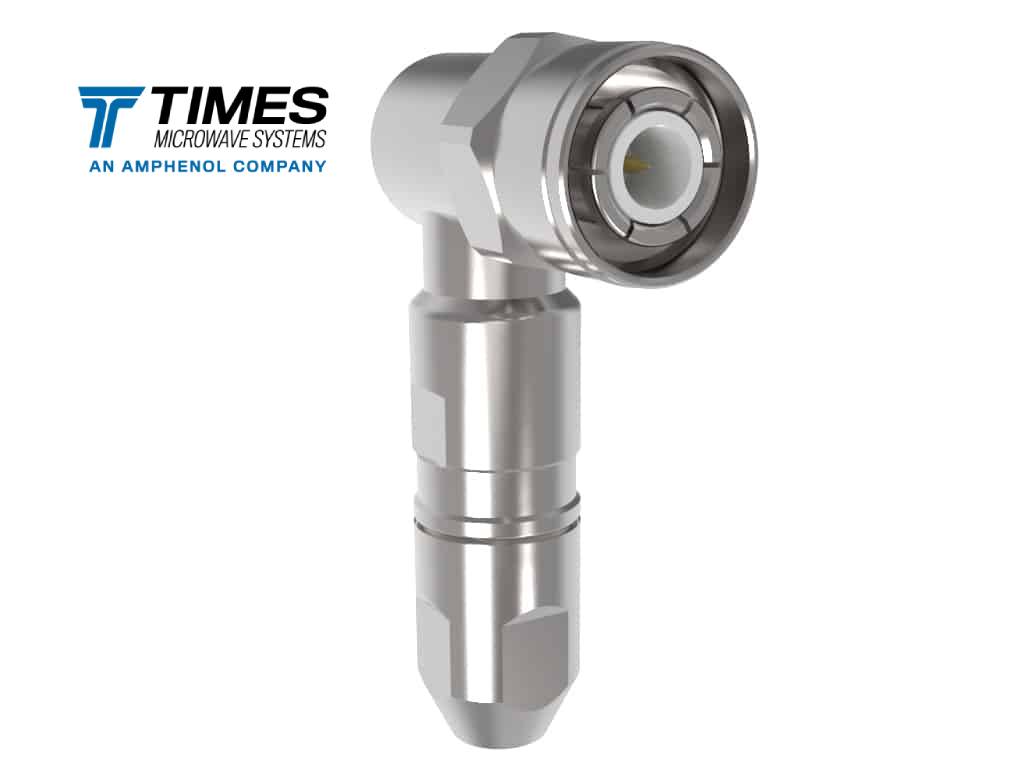

Type HN, male (plug), right angle, TC style connector for HPL-393, RG-393-NPP-SN, RG-213, RG-59, and SFT-393 type cables.
HN, male, right angle, with cable clamp
Part NumberTC-214P-HNM-RA-CC |
Stock Code3190-6680 |
InterfaceHN |
Gender male (plug) |
OrientationRight Angle |
PIM RatingNo |
Impedance (ohms)50 |
Max Frequency (GHz)1 |
VSWR Freq1.2 |
VSWR Frequency (GHz)1 |
Coupling NutHex |
Inner Contact AttachSolder |
Outer Contact AttachClamp |
Body FinishAlbaloy |
Pin FinishSilver |
Length (mm)77.85 |
Length (in)3.065 |
Width (mm)24.5 |
Width (in)0.965 |
Weight (g) |
Weight (lb) |
