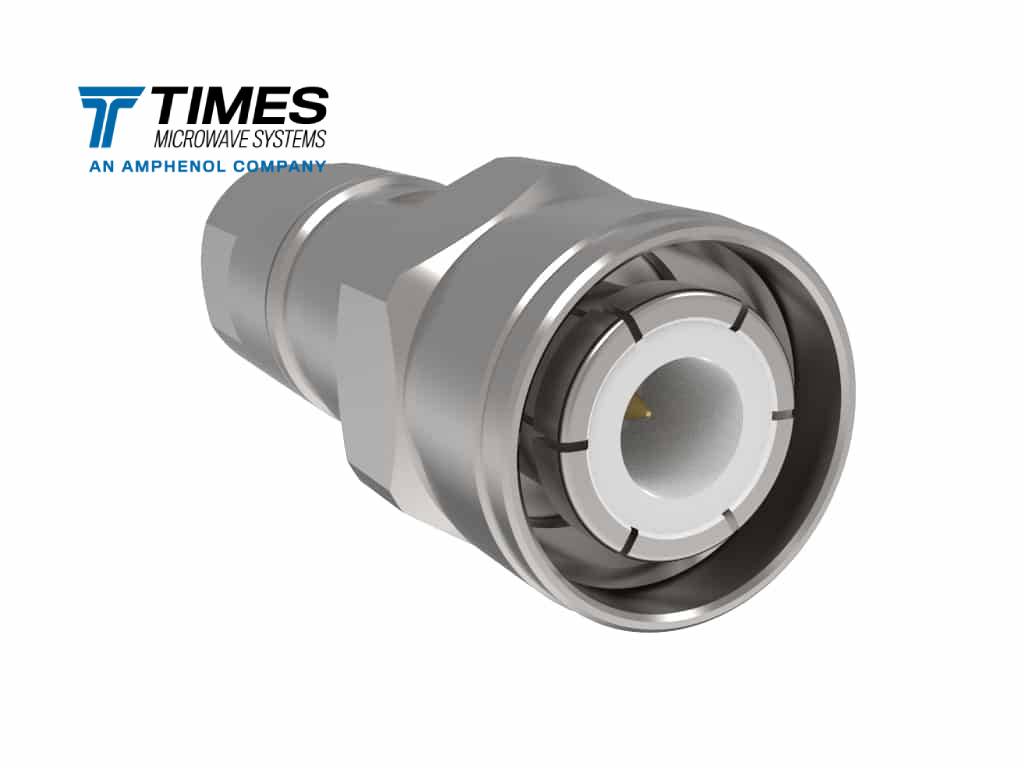

TC-214P-HNM-CC
Type HN, male (plug), straight, TC style connector for HPL-393, RG-393-NPP-SN, RG-213, RG-59, and SFT-393 type cables.
Stock Code: 3190-6679
HN, male, straight, with cable clamp
Request a Quote
Specifications
| Part NumberTC-214P-HNM-CC |
| Stock Code3190-6679 |
| InterfaceHN |
| Gender Male (plug) |
| OrientationStraight |
| PIM RatingNo |
| Impedance (ohms)50 |
| Max Frequency (GHz)1 |
| VSWR Freq1.2 |
| VSWR Frequency (GHz)1 |
| Coupling NutKnurl |
| Inner Contact AttachSolder |
| Outer Contact AttachClamp |
| Body FinishAlbaloy |
| Pin FinishSilver |
| Length (mm)66.7 |
| Length (in)2.626 |
| Width (mm)24.5 |
| Width (in)0.965 |
| Weight (g) |
| Weight (lb) |
