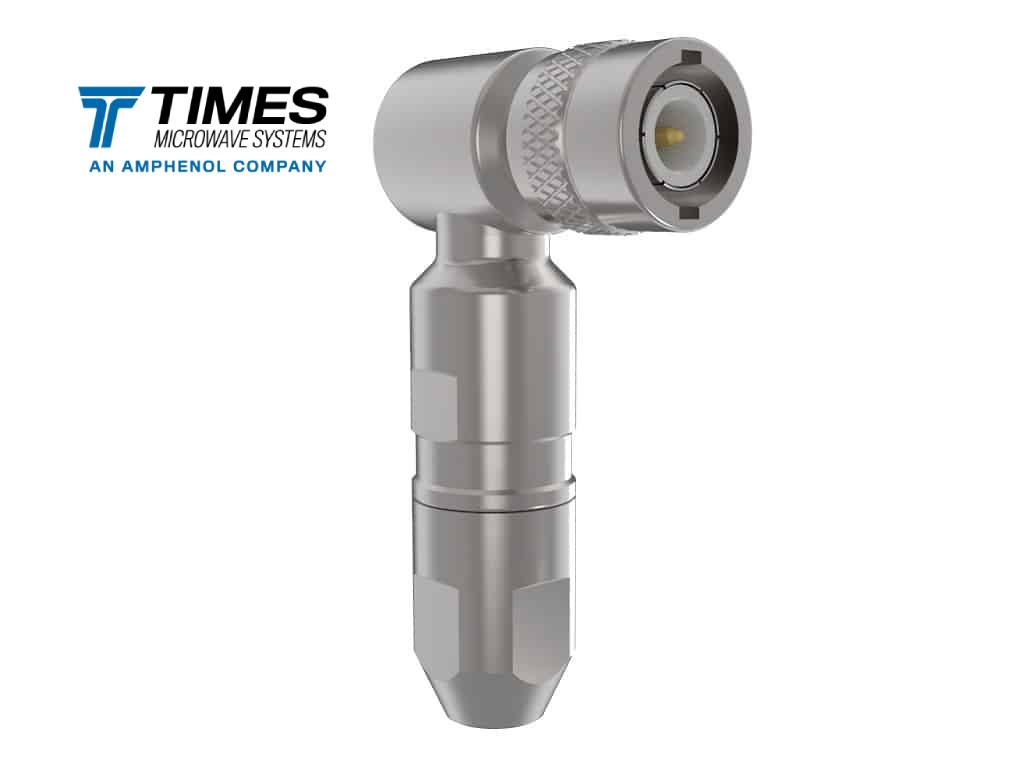

Type C, male (plug), right angle, TC style connector for HPL-393, RG-393-NPP-SN, RG-213, RG-223, and SFT-393 type cables.
C, male, right angle, with cable clamp
Part NumberTC-214P-CM-RA-CC |
Stock Code3190-6771 |
InterfaceC |
Gender male (plug) |
OrientationRight Angle |
PIM RatingNo |
Impedance (ohms)50 |
Max Frequency (GHz)2.5 |
VSWR Freq1.3 |
VSWR Frequency (GHz)2.5 |
Coupling NutKnurl |
Inner Contact AttachSolder |
Outer Contact AttachClamp |
Body FinishAlbaloy |
Pin FinishGold |
Length (mm)76.85 |
Length (in)3.026 |
Width (mm)19.5 |
Width (in)0.768 |
Weight (g) |
Weight (lb) |
