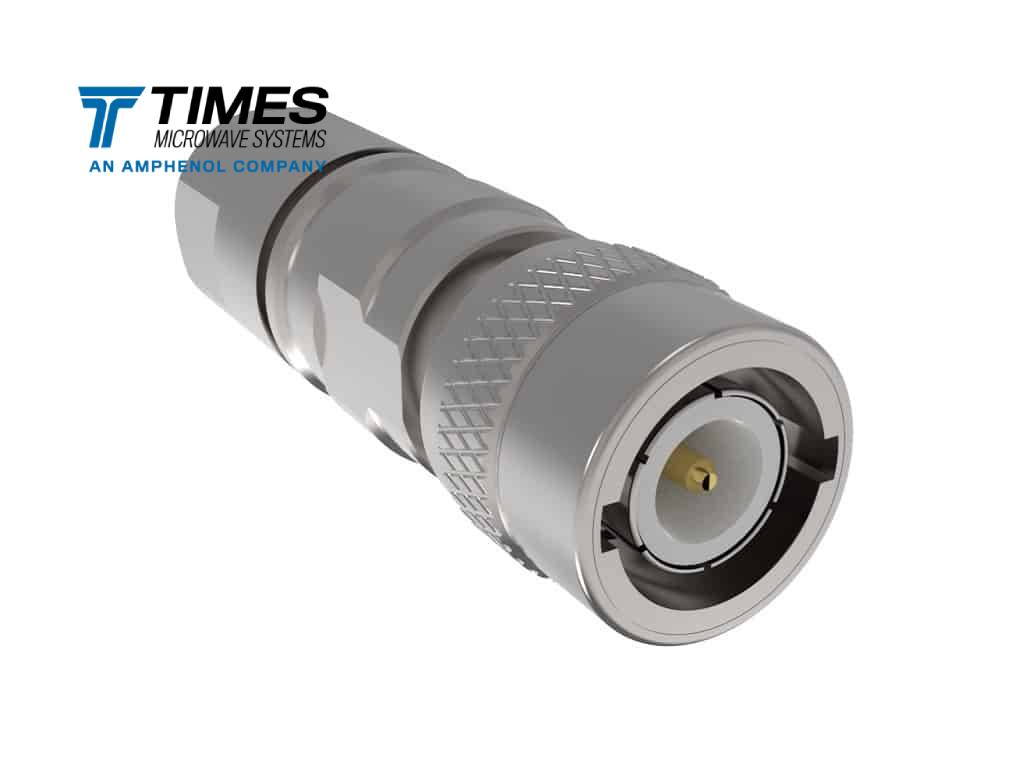

TC-214P-CM-CC
Type C, male (plug), straight, TC style connector for HPL-393, RG-393-NPP-SN, RG-213, RG-223, RG-174, and SFT-393 type cables.
Stock Code: 3190-6770
C, male, straight, with cable clamp
Request a Quote
Specifications
| Part NumberTC-214P-CM-CC |
| Stock Code3190-6770 |
| InterfaceC |
| Gender Male (plug) |
| OrientationStraight |
| PIM RatingNo |
| Impedance (ohms)50 |
| Max Frequency (GHz)2.5 |
| VSWR Freq1.3 |
| VSWR Frequency (GHz)2.5 |
| Coupling NutKnurl |
| Inner Contact AttachSolder |
| Outer Contact AttachClamp |
| Body FinishAlbaloy |
| Pin FinishGold |
| Length (mm)66.5 |
| Length (in)2.618 |
| Width (mm)19.5 |
| Width (in)0.768 |
| Weight (g) |
| Weight (lb) |
