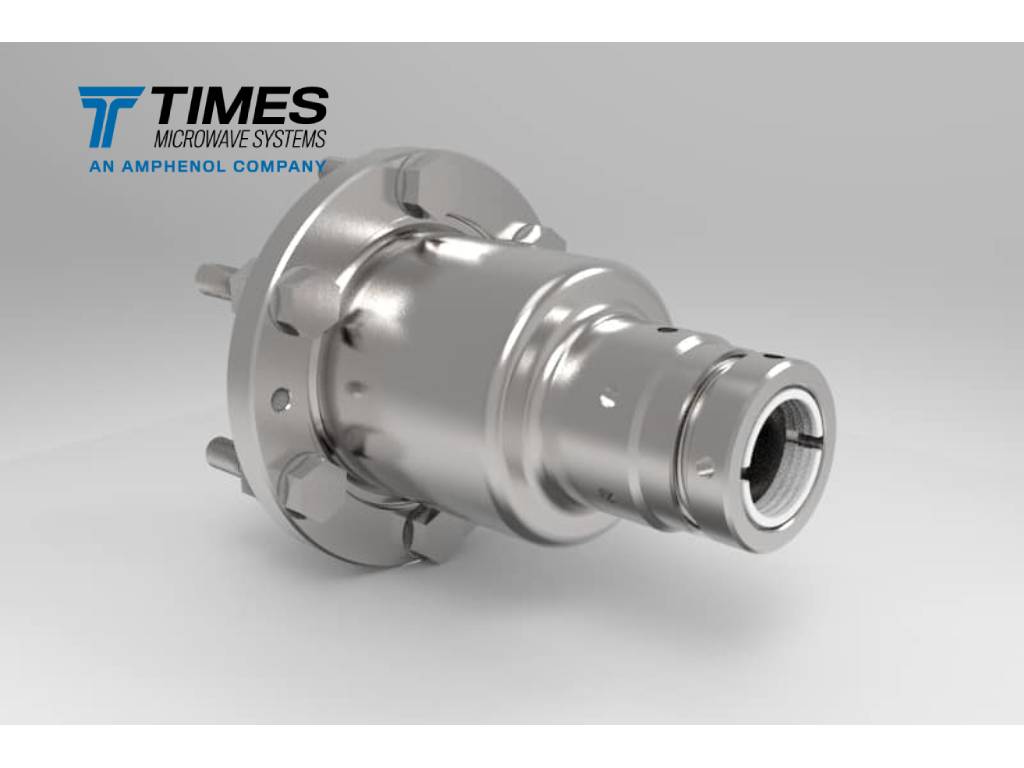

TC-1200-318EIA-SP
Type 3-1/8 EIA, flange, male (plug), straight, TC style connector for HP-1200 and HPL-1200 type cables.
Stock Code: 3190-6570
3-1/8 EIA Flange, straight
Request a Quote
Specifications
| Part NumberTC-1200-318EIA-SP |
| Stock Code3190-6570 |
| Interface3-1/8 EIA Flange |
| Gender Male (plug) |
| OrientationStraight |
| PIM RatingNo |
| Impedance (ohms)50 |
| Max Frequency (GHz)1.5 |
| VSWR Freq1.2 |
| VSWR Frequency (GHz)1.5 |
| Coupling NutFlange |
| Inner Contact AttachSolder |
| Outer Contact AttachClamp |
| Body FinishAlbaloy |
| Pin FinishSilver |
| Length (mm)144.53 |
| Length (in)5.69 |
| Width (mm)132 |
| Width (in)5.197 |
| Weight (g) |
| Weight (lb) |
