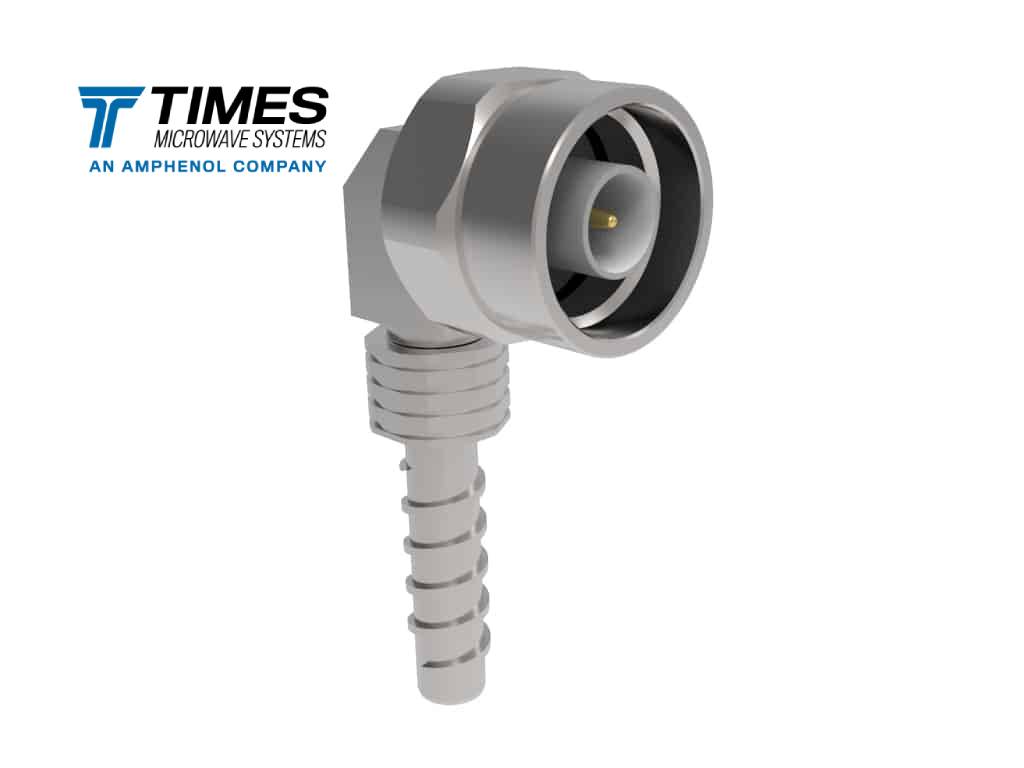

SL-006-NM-RA
Type N, male (plug), right angle, SL style connector for SLA06, SLA18, SLS06, SLS18, SLU06, and SLU18 type cables.
Stock Code: 3190-2057
N Male right angle
Request a Quote
Specifications
| Part NumberSL-006-NM-RA |
| Stock Code3190-2057 |
| InterfaceN |
| Gender Male (plug) |
| Orientation Right Angle |
| PIM RatingN/A |
| Impedance (ohms)50 |
| Max Frequency (GHz)18 |
| VSWR Freq1.35:1 |
| VSWR Frequency (GHz)18 |
| Coupling NutHex |
| Inner Contact AttachSolder |
| Outer Contact AttachSolder |
| Body FinishPassivated |
| Pin FinishGold |
| Length (mm) |
| Length (in) |
| Width (mm) |
| Width (in) |
| Weight (g)44.5 |
| Weight (lb)0.098 |
