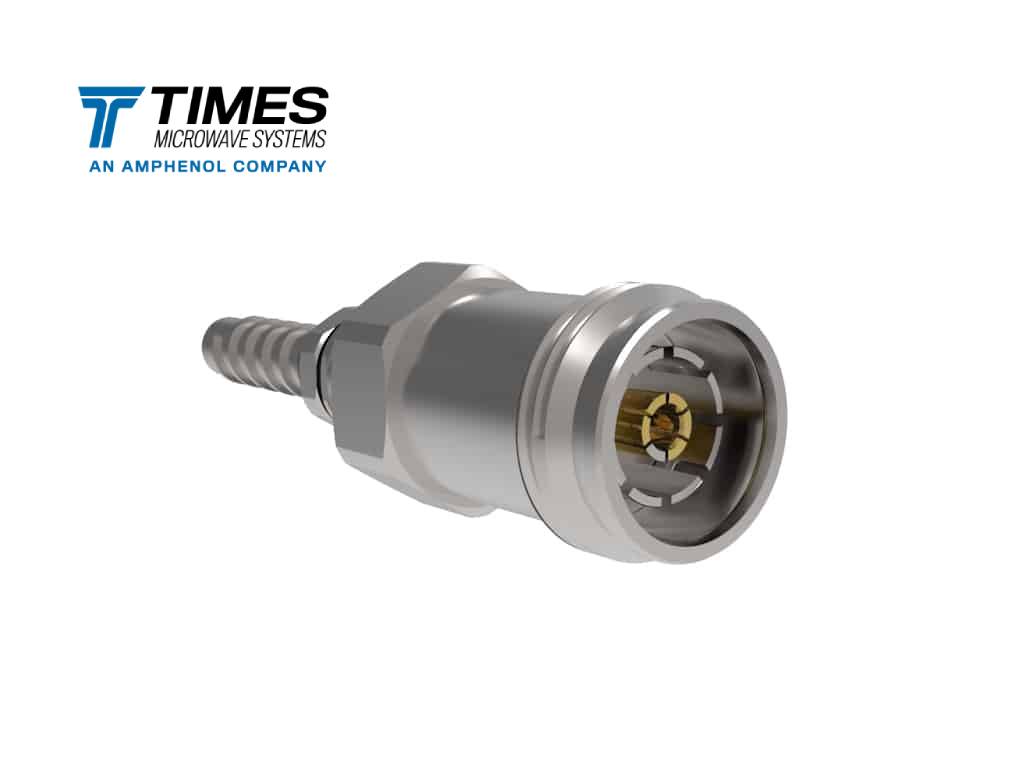

SL-006-43F
Type 4.3/10 mini DIN, female (jack), straight, SL style connector for SLA06, SLS06, and SLU06 type cables.
Stock Code: 3190-3216
4.3/10 Female
Request a Quote
Specifications
| Part NumberSL-006-43F |
| Stock Code3190-3216 |
| Interface4.3/10 mini DIN |
| Gender Female (jack) |
| Orientation Straight |
| PIM RatingN/A |
| Impedance (ohms)50 |
| Max Frequency (GHz)6 |
| VSWR Freq1.25:1 |
| VSWR Frequency (GHz)6 |
| Coupling NutN/A |
| Inner Contact AttachSolder |
| Outer Contact AttachSolder |
| Body FinishPassivated |
| Pin FinishGold |
| Length (mm) |
| Length (in) |
| Width (mm) |
| Width (in) |
| Weight (g)36 |
| Weight (lb)0.079 |
