WR-600
EZ-600-NMK

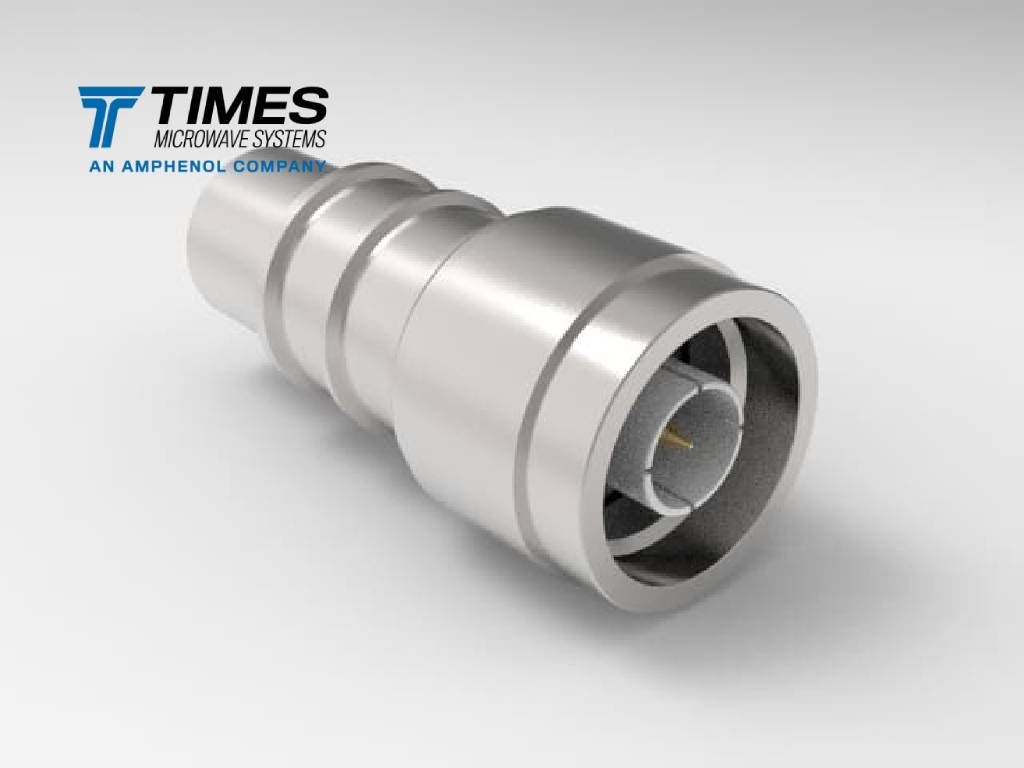

Type N, male (plug), straight, EZ style connector for LMR®-600, TCOM®-600, and T-RAD®-600 type cables.
Stock Code: 3190-669
N-male (plug)
Inventory Status
| Distributor | Qty | Order |
| RS | 4 | Buy |
Specifications
| Part NumberEZ-600-NMK |
| Stock Code3190-669 |
| InterfaceN |
| Gender Male (plug) |
| OrientationStraight |
| PIM Rating |
| Impedance (ohms)50 |
| Max Frequency (GHz)2.5 |
| VSWR Freq<1.25:1 |
| VSWR Frequency (GHz)2.5 |
| Coupling NutKnurl |
| Inner Contact AttachSpring Finger |
| Outer Contact AttachCrimp |
| Body FinishSilver |
| Pin FinishGold |
| Length (mm)53 |
| Length (in)2.09 |
| Width (mm)23.4 |
| Width (in)0.92 |
| Weight (g)0.164 |
| Weight (lb)23.4 |
Compatible with
Tools and Accessories
CST-600
Grounding Kits
Cold Shrink Weatherproofing
Hoisting Grips
Weather Seal Strain Relief Boots
CT-600
CCT-02
CCT-03
