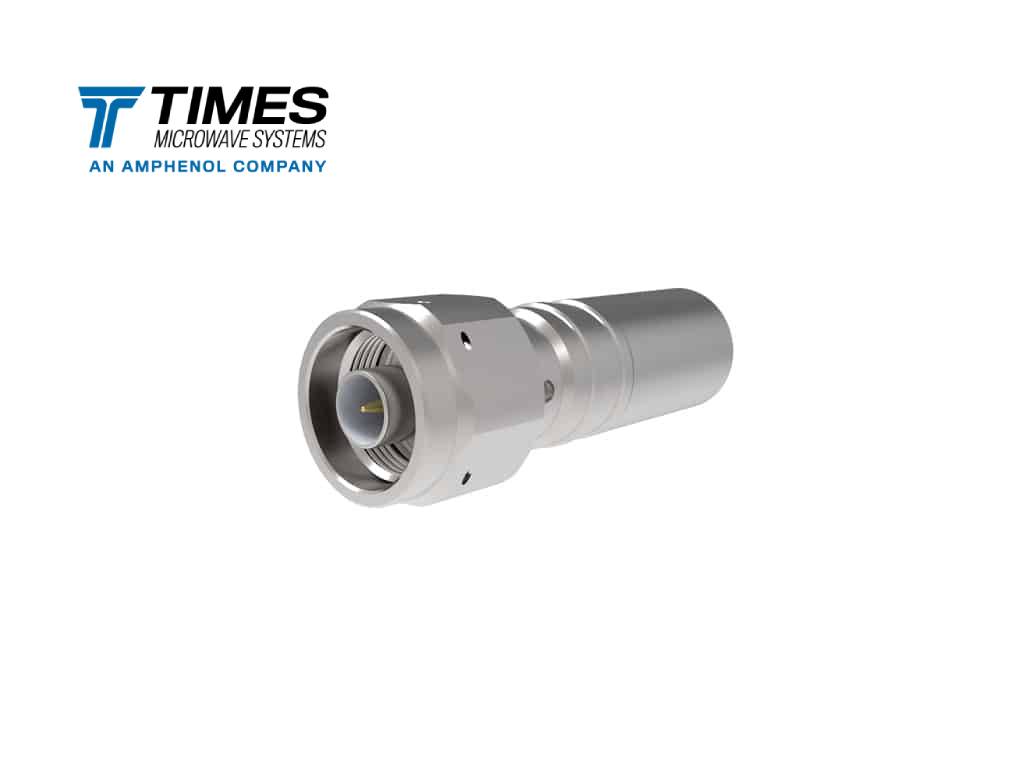

EZ-600-NMH-LW-X

The EZ-600-NMH-LW-X eliminates assembly errors and soldering with crimp-style outer contacts and spring finger inner contacts. It features a no-braid trim design, eliminating FOD and guaranteeing an optimal and consistent termination. The BeCu pins are designed to maximize surface contact and minimize current density. They provide a strong spring force making the EZ connectors a perfect choice for extreme cold and high- vibration applications where the center conductor might contract. The Type N is a durable, weatherproof, medium-size RF connector designed for systems where excellent RF and mechanical performance is critical. They feature a threaded coupling mechanism and are fully interchangeable with N-Type connectors made to the MIL-C-39012 specification. This is a male (plug), straight connector for 600 size cables.

Stock Code: 3190-8216

N-male (plug)

Build your Assembly

This a factory assembled custom assembly. The cable and connectors are not available for individual sale.

EZ-600-NMH-LW-X
Cable
Connector B
Design Your Assembly

Specifications

Part NumberEZ-600-NMH-LW-X
Stock Code3190-8216
InterfaceN
Gendermale (plug)
Orientationstraight
PIM Rating
Impedance (ohms)50
Max Frequency (GHz)6
VSWR Freq<1.30:1
VSWR Frequency (GHz)
Coupling NutHex
Inner Contact Attach
Outer Contact Attach
Body Finish
Pin Finish
Length (mm)-
Length (in)-
Width (mm)-
Width (in)-
Weight (g)60.42
Weight (lb)0.13
