EZ-400-QNM-RA-X

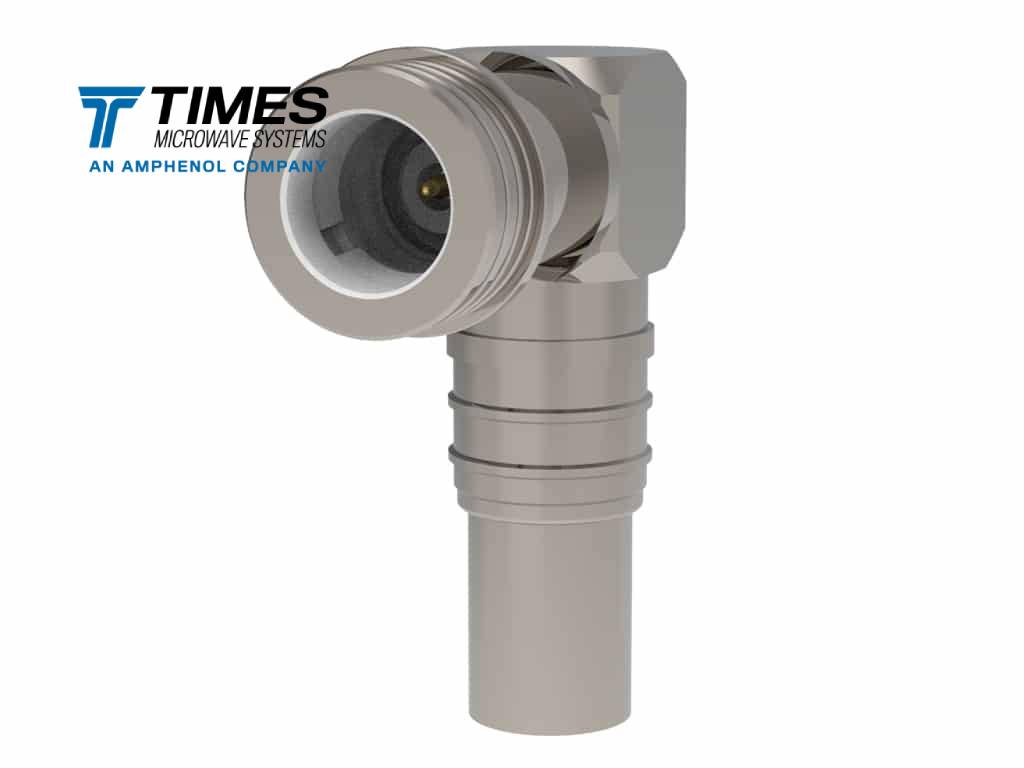

Type QN, male (plug), right angle, EZ style connector for LMR®-400, TCOM®-400, and T-RAD®-400-FR type cables.
Stock Code: 3190-2981
QN-Male right angle connector for 400 size cables.
Inventory Status
| Distributor | Qty | Order |
| Mouser Electronics | 4 | Buy |
Specifications
| Part NumberEZ-400-QNM-RA-X |
| Stock Code3190-2981 |
| InterfaceQN |
| Gender Male (plug) |
| OrientationRight Angle |
| PIM Rating |
| Impedance (ohms)50 |
| Max Frequency (GHz) |
| VSWR Freq<1.2:1 |
| VSWR Frequency (GHz)3 |
| Coupling NutKnurl |
| Inner Contact AttachSpring Finger |
| Outer Contact AttachCrimp |
| Body FinishAlballoy |
| Pin FinishGold |
| Length (mm)51.7 |
| Length (in)2.04 |
| Width (mm)40.3 |
| Width (in)1.59 |
| Weight (g)80.2 |
| Weight (lb)0.18 |
