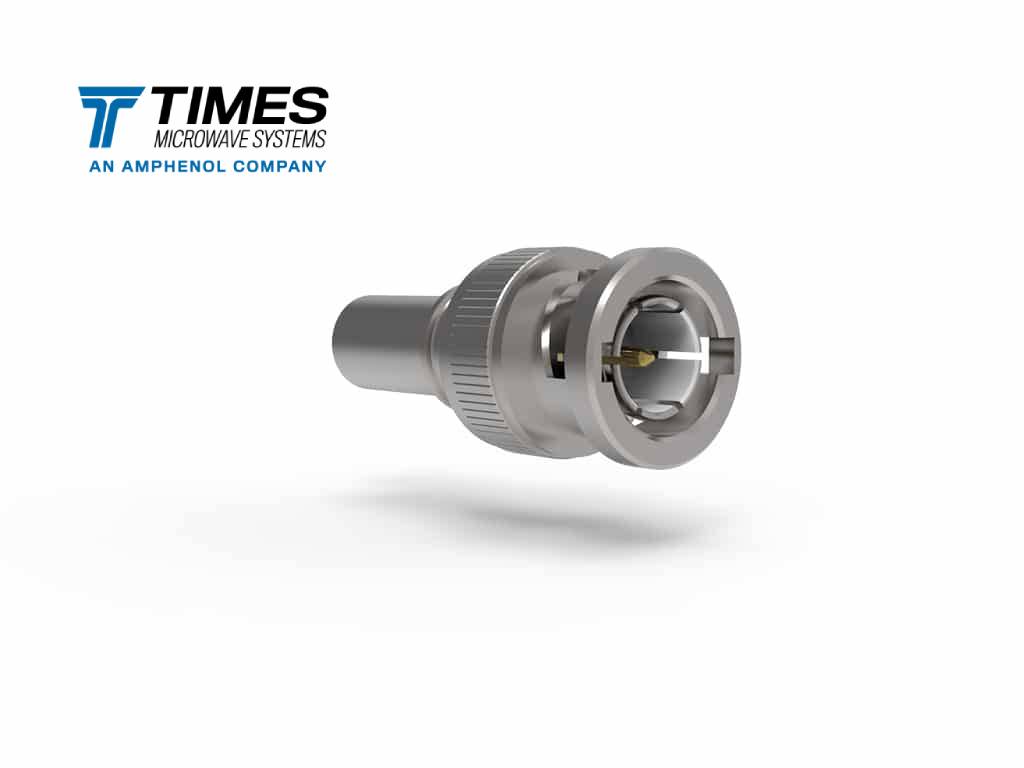

Type BNC, male (plug), straight, EZ style connector for LMR®-240-75 type cables. The EZ-240-BM-75-X eliminates assembly errors and soldering with crimp-style outer contacts and spring finger inner contacts. It features a no-braid trim design, eliminating FOD and guaranteeing an optimal and consistent termination.  The BeCu pins are designed to maximize surface contact and minimize current density. They provide a strong spring force making the EZ connectors a perfect choice for extreme cold and high- vibration applications where the center conductor might contract. BNC connectors are a classic, dependable design, suited to accommodate a large variety of RG and industry-standard coaxial cables, in a variety of termination styles. Its bayonet-style coupling mechanism enables quick-connect and disconnect with positive locking. Mating is achieved with just a quarter-turn of the coupling nut.

Stock Code: 3190-6261

BNC Male (plug)

Build your Assembly

This a factory assembled custom assembly. The cable and connectors are not available for individual sale.

Connector B
Design Your Assembly


Part NumberEZ-240-BM-75-X
Stock Code3190-6261
Gender male (plug)
PIM Rating
Impedance (ohms)75
Max Frequency (GHz)2
VSWR Freq<1.25:1
VSWR Frequency (GHz)2
Coupling NutKnurl
Inner Contact AttachN/A
Outer Contact AttachClamp
Body FinishAlballoy
Pin FinishGold
Length (mm)30.4
Length (in)1.2
Width (mm)14.5
Width (in)0.57
Weight (g)14
Weight (lb)0.03
