EZ-195-200-NF-BH-X

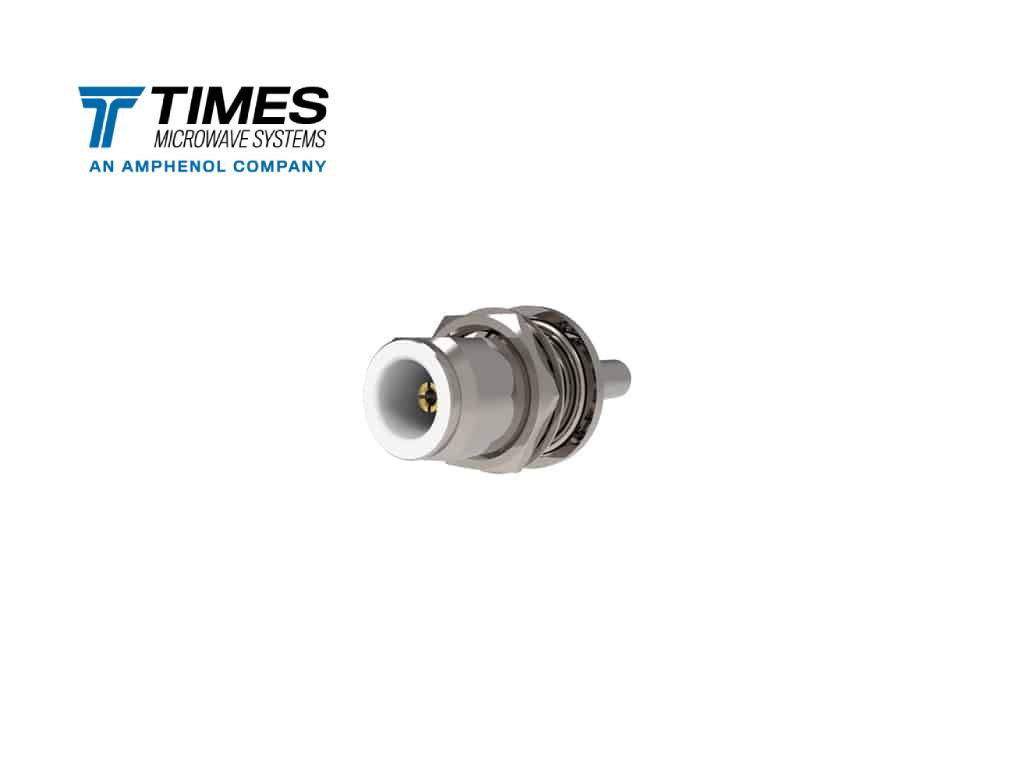

Type N, female (jack), straight, EZ style connector for LMR-195 type cables.
Stock Code: 3190-8007
N-female (jack)
Build your Assembly
This a factory assembled custom assembly. The cable and connectors are not available for individual sale.
Specifications
| Part NumberEZ-195-200-NF-BH-X |
| Stock Code3190-8007 |
| InterfaceN |
| Gender female (jack) |
| OrientationStraight |
| PIM Rating |
| Impedance (ohms)50 |
| Max Frequency (GHz)8 |
| VSWR Freq<1.35:1 |
| VSWR Frequency (GHz)8 |
| Coupling NutN/A |
| Inner Contact AttachSpring Finger |
| Outer Contact AttachCrimp |
| Body FinishNickel |
| Pin FinishGold |
| Length (mm)45.9 |
| Length (in)1.81 |
| Width (mm)22 |
| Width (in)0.87 |
| Weight (g)40.43 |
| Weight (lb)0.09 |
Compatible with
Tools and Accessories
CCT-03
CST-195
