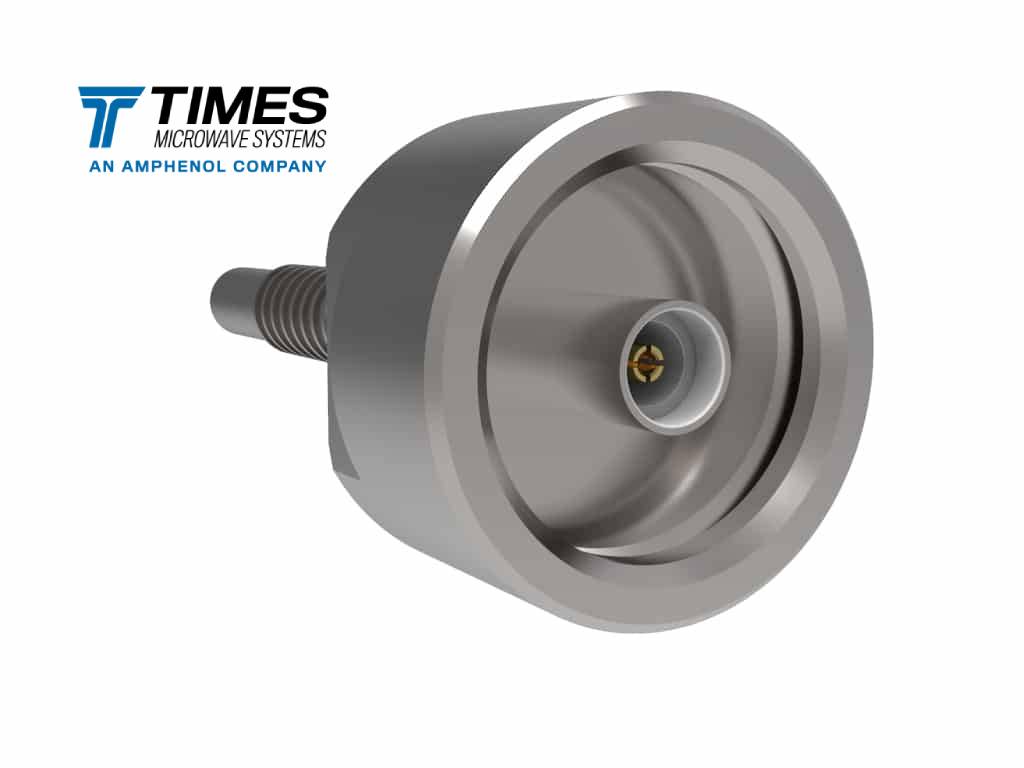

Type 3.5mm, female (jack), straight, CL style connector for CLS26 and CLU26 type cables.
3.5mm ruggedized female NMD
| Part NumberCL-026-3FR |
| Stock Code3190-6553 |
| Interface3.5mm |
| Gender Female (jack) |
| Orientation Straight |
| PIM RatingN/A |
| Impedance (ohms)50 |
| Max Frequency (GHz)26.5 |
| VSWR Freq1.25:1 |
| VSWR Frequency (GHz)26.5 |
| Coupling NutN/A |
| Inner Contact AttachSolder |
| Outer Contact AttachSolder |
| Body FinishPassivated |
| Pin FinishGold |
| Length (mm) |
| Length (in) |
| Width (mm) |
| Width (in) |
| Weight (g)30 |
| Weight (lb)0.066 |
