CL-018-NF
The CL-018-NF is a straight Type N female (jack) connector in CL style, ideal for CLS18 and CLU18 cables. With 50 Ω impedance and operation up to 18 GHz, it delivers superior RF performance for test, measurement, and communications setups. Rugged and reliable, it’s the go-to option for demanding RF interconnect needs.
Stock Code: 3190-6904
Type N Female
Request a Quote
Specifications
| Part NumberCL-018-NF |
| Stock Code3190-6904 |
| InterfaceN |
| Gender Female (jack) |
| Orientation Straight |
| PIM RatingN/A |
| Impedance (ohms)50 |
| Max Frequency (GHz)18 |
| VSWR Freq1.20:1 |
| VSWR Frequency (GHz)18 |
| Coupling NutN/A |
| Inner Contact AttachSolder |
| Outer Contact AttachSolder |
| Body FinishPassivated |
| Pin FinishGold |
| Length (mm) |
| Length (in) |
| Width (mm) |
| Width (in) |
| Weight (g)41 |
| Weight (lb)0.09 |
Compatible with

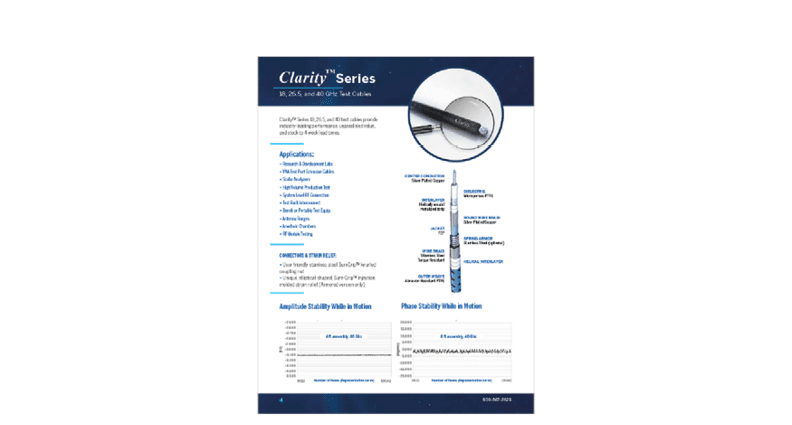

Documentation
