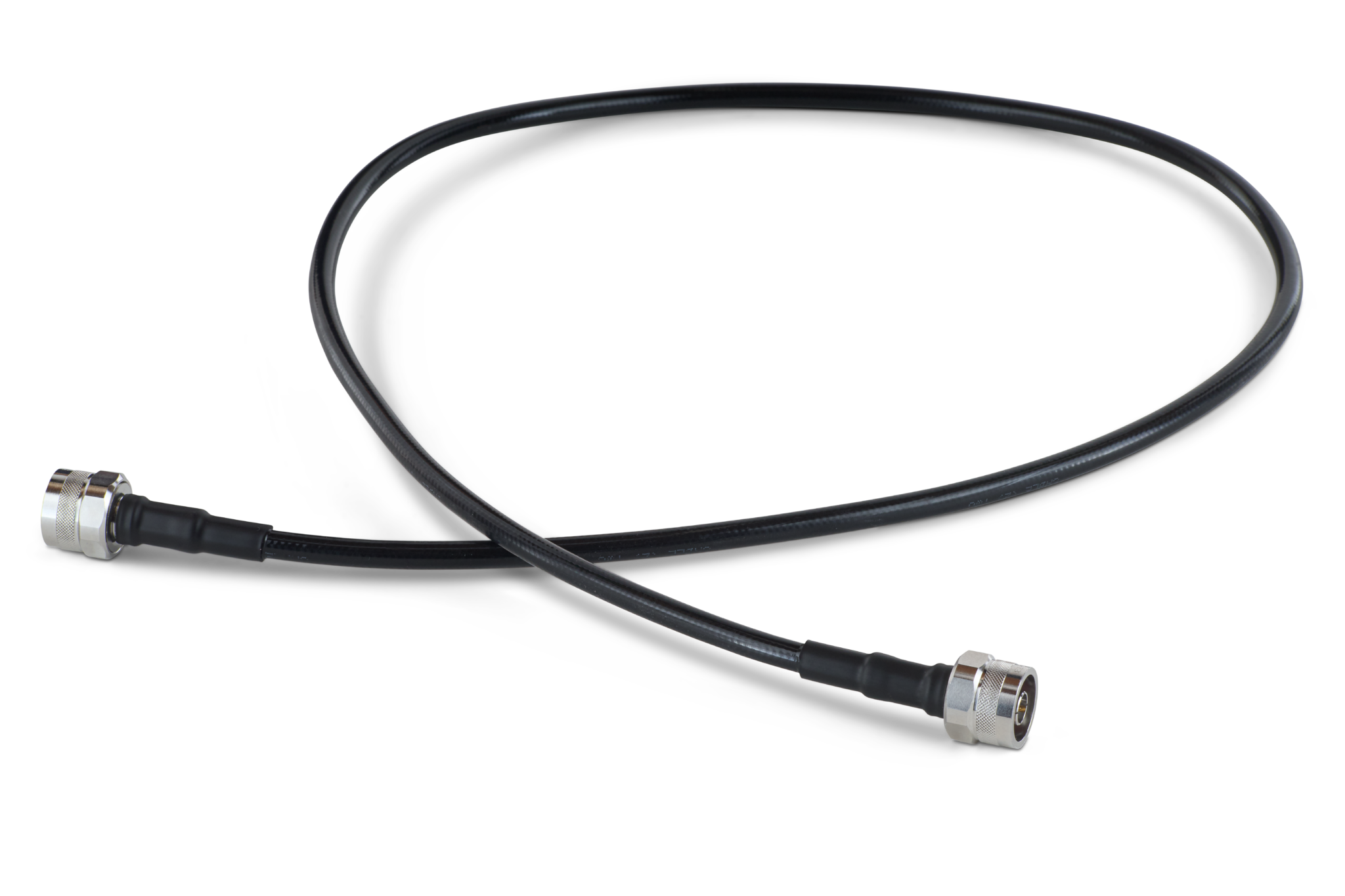

XF-304

XtendedFlex^® 304 is a versatile coaxial cable offering increased power handling and low attenuation with high flexibility. Similar in construction to XF-213, the smaller XF-304 is an ideal solution for highly dynamic applications that may have more stringent weight and size requirements.

Stock Code: XF-304

XtendedFlex 304

Inventory Status

Distributor	Qty	Order

Specifications

Part NumberXF-304

EnvironmentIndoor

JacketPUR

Overall Diameter (mm)7.62

Overall Diameter (in)0.305

Weight Kg/m0.035

Weight lb/ft0.078

Operating Temp.°C (°F) -55° to 105°C
(-67° to 221°F)

Min. Bend Radius (mm)38.1

Min. Bend Radius (in)1.50

Bending Moment (Nm)

Bending Moment (ft-lb)

Max Frequency (GHz)5.8

Impedance (ohms)50

Power Handling (DWV)

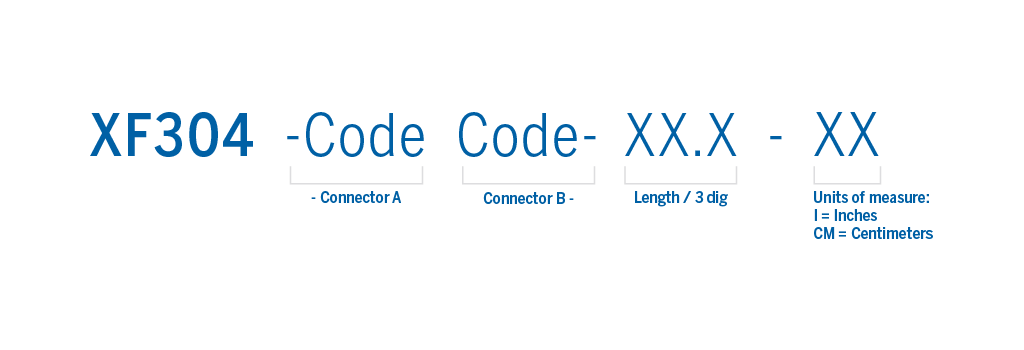

Part Number Structure

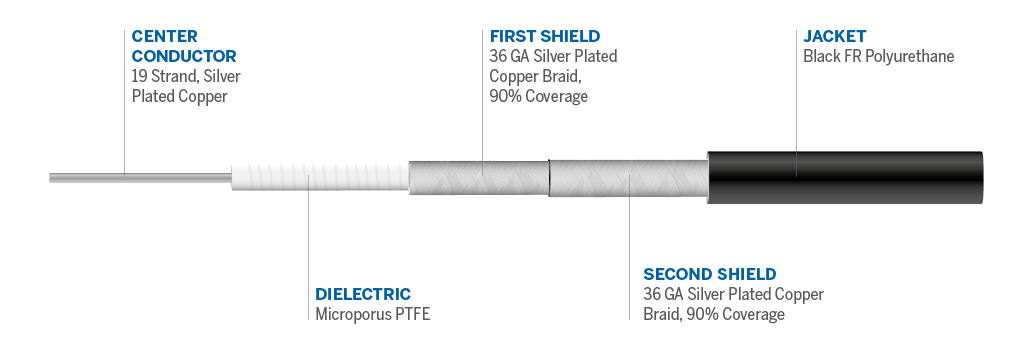

Cable Details
