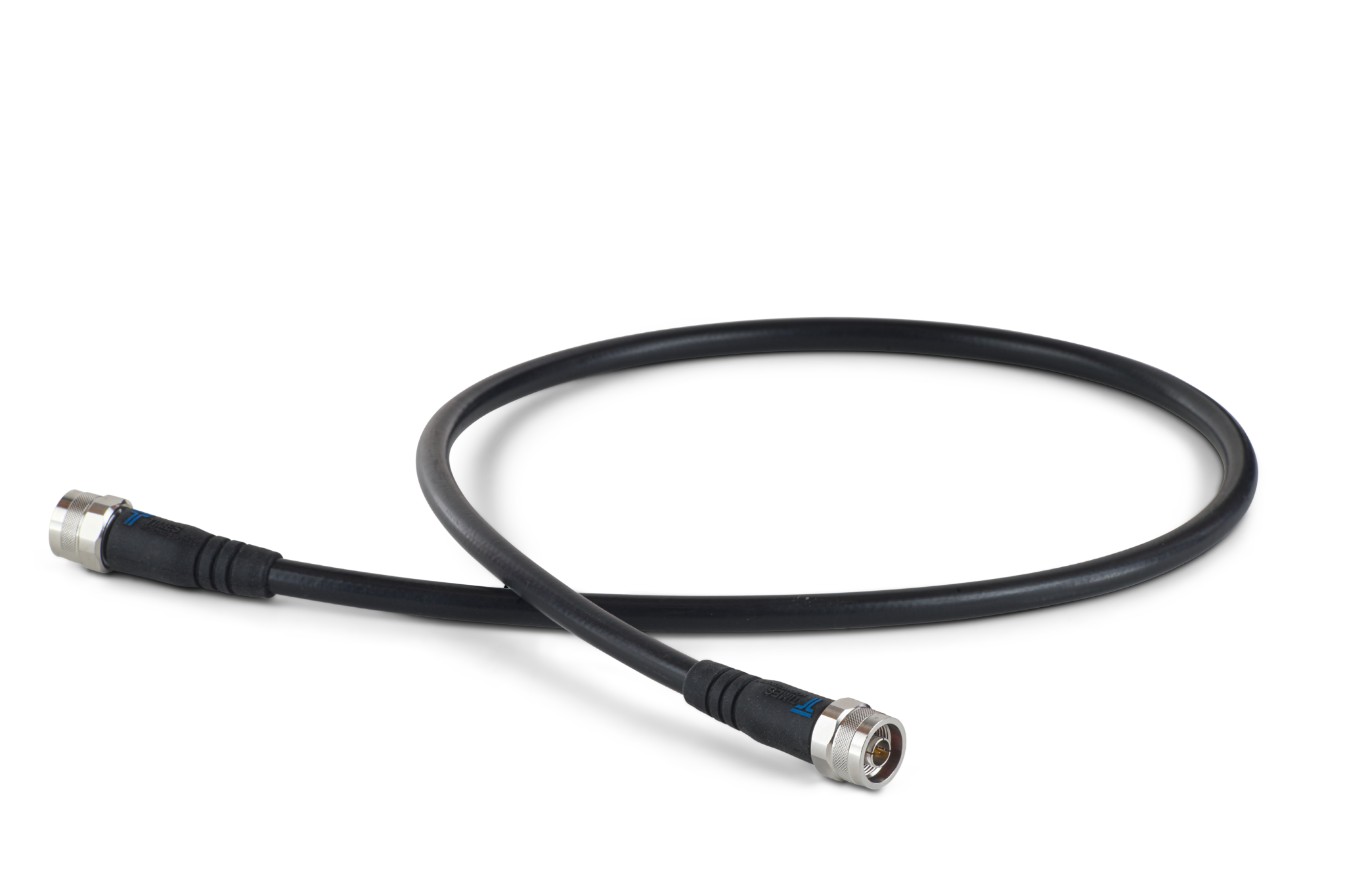

XF-213
XtendedFlex™ 213 offers high power and voltage handling while maintaining a high level of flexibility. It is ideal for dynamic industrial and transportation applications that demands long service life.
Stock Code:
XtendedFlex 213
Inventory Status
| Distributor | Qty | Order |
Specifications
| Part Number |
| EnvironmentIndoor |
| JacketPUR |
| Overall Diameter (mm)10.16 |
| Overall Diameter (in)0.405 |
| Weight Kg/m0.064 |
| Weight lb/ft0.14 |
| Operating Temp.°C (°F)
-55° to 105°C
(-67° to 221°F) |
| Min. Bend Radius (mm)50.8 |
| Min. Bend Radius (in)2.00 |
| Bending Moment (Nm) |
| Bending Moment (ft-lb) |
| Max Frequency (GHz)5.8 |
| Impedance (ohms)50 |
| Power Handling (DWV) |
Compatible with

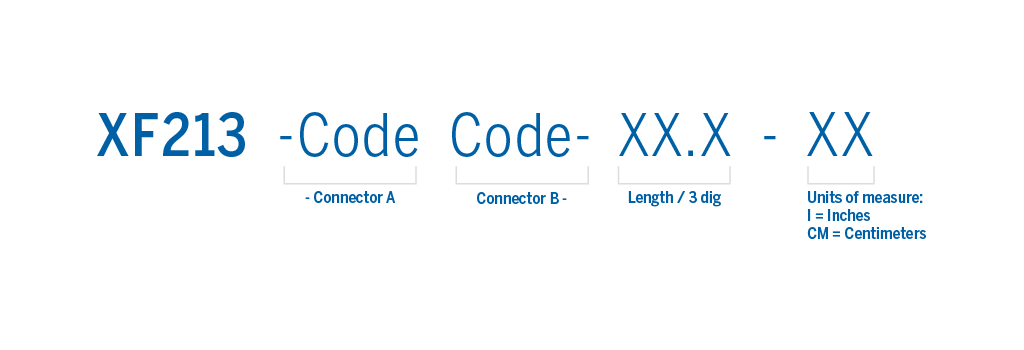

Part Number Structure

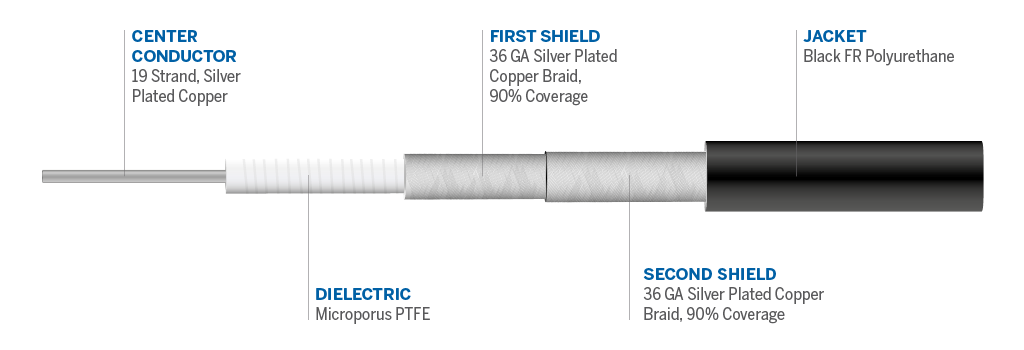

Cable Details
