TFlex-405

TFlex®-405 is a compact, flexible microwave coaxial cable designed to deliver low insertion loss, strong electromagnetic interference (EMI) shielding, and low passive intermodulation (PIM) performance. It serves as a space-saving alternative to smaller semi-rigid coaxial cables, offering reliable performance in a lightweight design. The construction includes a solid silver-plated copper center conductor and a solid polytetrafluoroethylene (PTFE) dielectric for excellent signal integrity and thermal performance. Dual silver-plated copper braid shields and a rugged fluorinated ethylene propylene (FEP) outer jacket provide durability in harsh environments, including UV, flame, and chemical exposure. TFlex-405 is well-suited for use in aerospace, radar systems, robotics, and other mission-critical RF (radio frequency) applications.

Stock Code: 51670

TFlex-405 Low Loss, excellent shielding and Low PIM alternative to Semi-Rigid

Inventory Status
In Stock Qty Order
Murray-Benjamin Electric2000Buy
WireMasters377Buy
SEA Wire and Cable1319Buy
CDM Inc.8842Buy
Microwave Components, LLC1915Buy

Specifications

Part NumberTFLEX-405
Environment
JacketFEP
Overall Diameter (mm)2.6416
Overall Diameter (in)0.104
Weight Kg/m0.0223
Weight lb/ft0.015
Operating Temp.°C (°F)-55° to 125°C (-85° to 257°F)
Min. Bend Radius (mm)6.35
Min. Bend Radius (in)0.25
Bending Moment (Nm)
Bending Moment (ft-lb)
Max Frequency (GHz)60
Impedance (ohms)50
Power Handling (DWV)

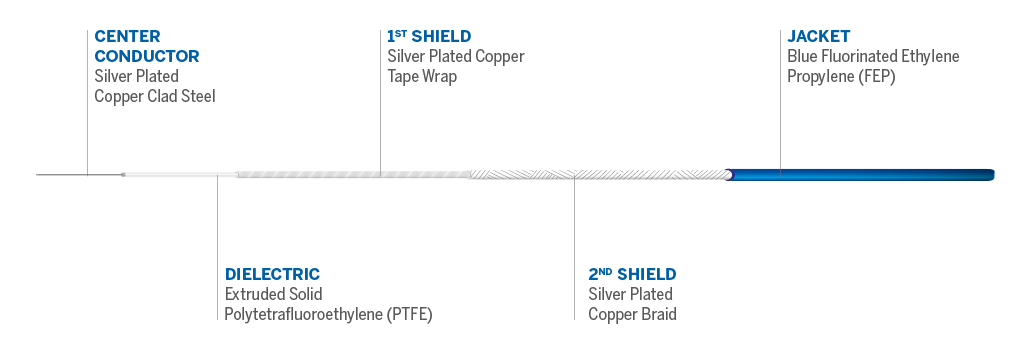

Cable Details

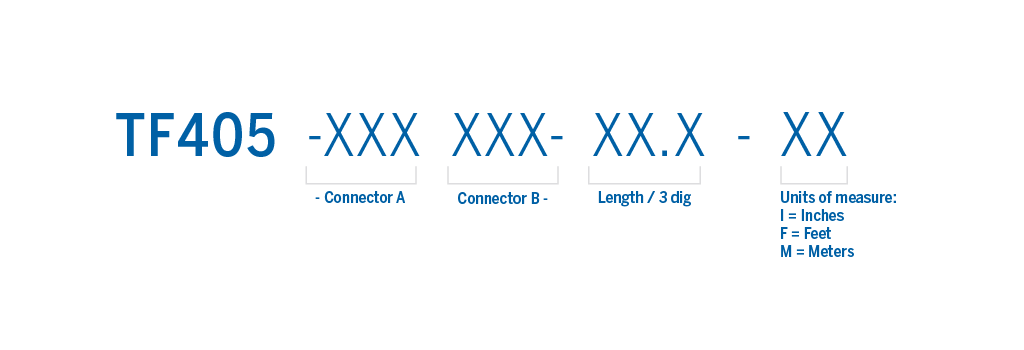

Part number structure

Part Number Structure

Cable details
