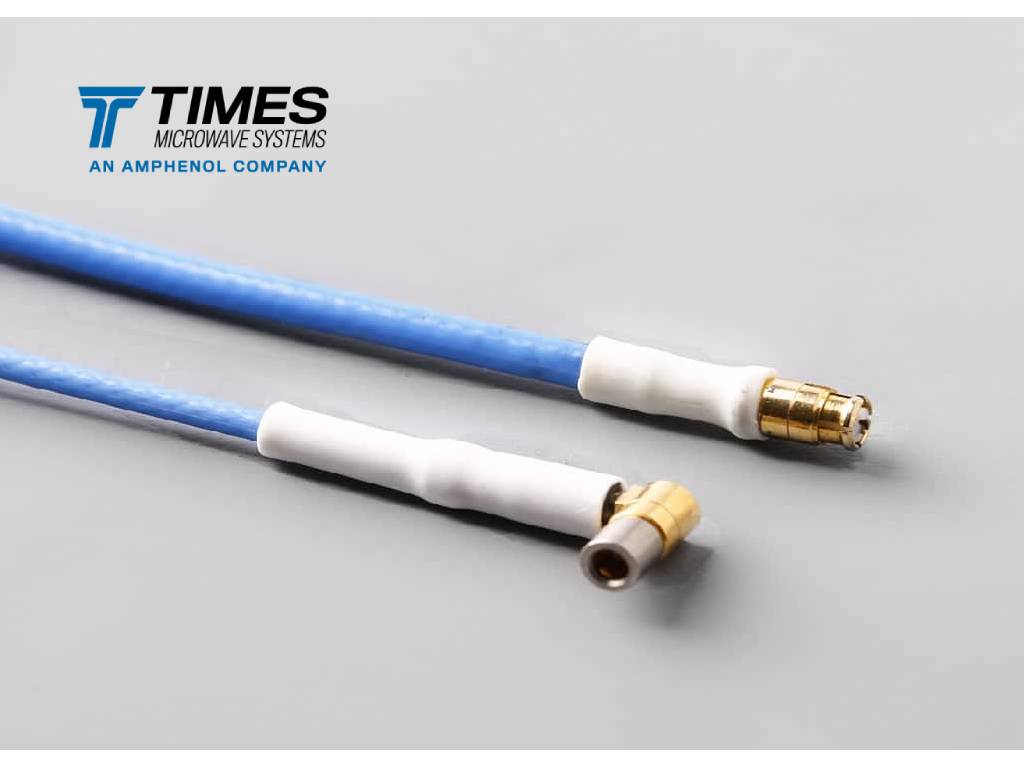

TFlex-401

TFlex®-401 is a high-performance microwave coaxial cable that combines low loss, excellent shielding, and low passive intermodulation (PIM) performance in a flexible format. Engineered as a replacement for larger semi-rigid coaxial cables, it offers comparable electrical performance with easier routing and installation. The cable features a solid silver-plated copper center conductor and a solid polytetrafluoroethylene (PTFE) dielectric for thermal stability and consistent impedance. A dual layer of silver-plated copper braid shielding ensures strong protection against electromagnetic interference (EMI). Finished with a fluorinated ethylene propylene (FEP) outer jacket, TFlex-401 is UV-resistant, flame-retardant, and chemical-resistant—ideal for aerospace, defense, and high-power RF (radio frequency) applications.

Stock Code: 51778

TFlex-401 Low Loss, excellent shielding and Low PIM alternative to Semi-Rigid

Inventory Status
In Stock Qty Order
Murray-Benjamin Electric2000Buy

Specifications

Part NumberTFLEX-401
Environment
JacketFEP
Overall Diameter (mm)6.858
Overall Diameter (in)0.27
Weight Kg/m0.1414
Weight lb/ft0.095
Operating Temp.°C (°F)-55° to 125°C (-85° to 257°F)
Min. Bend Radius (mm)28.575
Min. Bend Radius (in)1.125
Bending Moment (Nm)
Bending Moment (ft-lb)
Max Frequency (GHz)19
Impedance (ohms)50
Power Handling (DWV)

Part Number Structure

Cable Details

Documentation
