TCOM-400-FS-DB

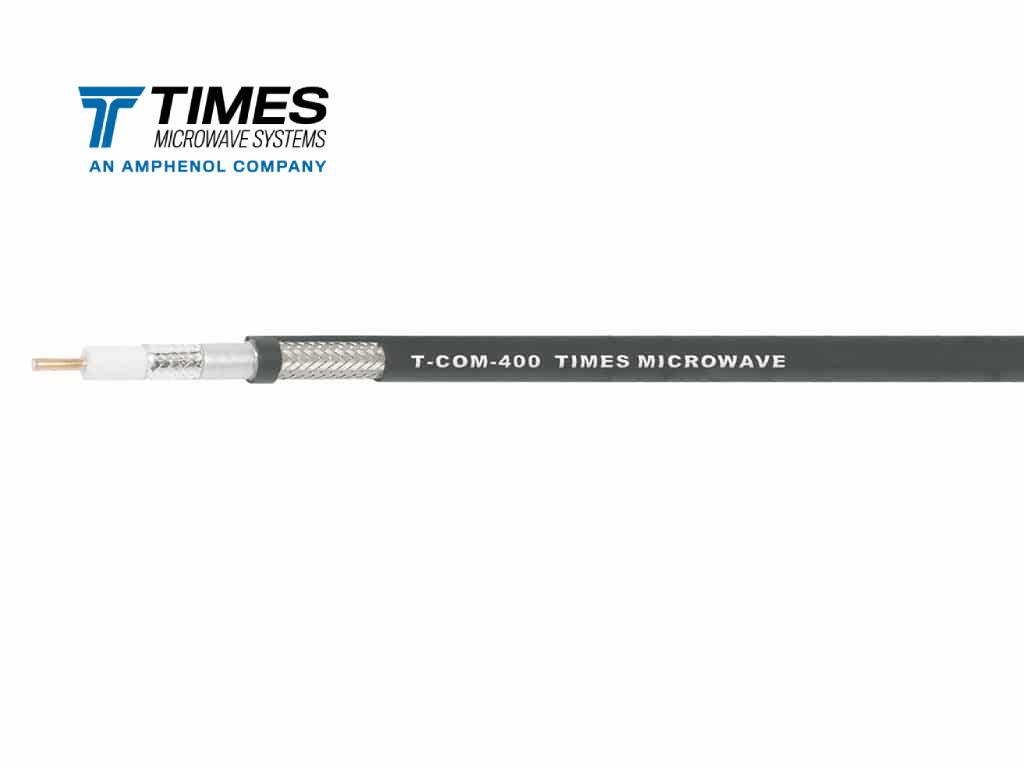

T-COM® 400 are the most versatile, low-loss coaxial cables on the market. Featuring the same attenuation as LMR®, these TCOM cables feature a multi-layer shield to deliver a flexible, rugged, low loss, low PIM coaxial option. TCOM family is perfect for low PIM applications requiring handling or movement after initial installation and the need for optimized shielding effectiveness in harsh environment survival. The TCOM-400-FS-DB is a UV Resistant features a stranded center conductor and a black polyurethane, watertight, jacket.

Stock Code: 55019

TCOM-400 cable/stranded center conductor,black PU jacket,watertight

Inventory Status
In Stock Qty Order

Specifications

Part NumberTCOM-400-FS-DB
EnvironmentIndoor
JacketPUR
Overall Diameter (mm)10.287
Overall Diameter (in)0.405
Weight Kg/m0.1191
Weight lb/ft0.08
Operating Temp.°C (°F)-40° to 85°C (-40° to 185°F)
Min. Bend Radius (mm)25.4
Min. Bend Radius (in)1
Bending Moment (Nm)0.68
Bending Moment (ft-lb)0.5
Max Frequency (GHz)6
Impedance (ohms)50
Power Handling (DWV)

Part Number Structure

Cable Details
