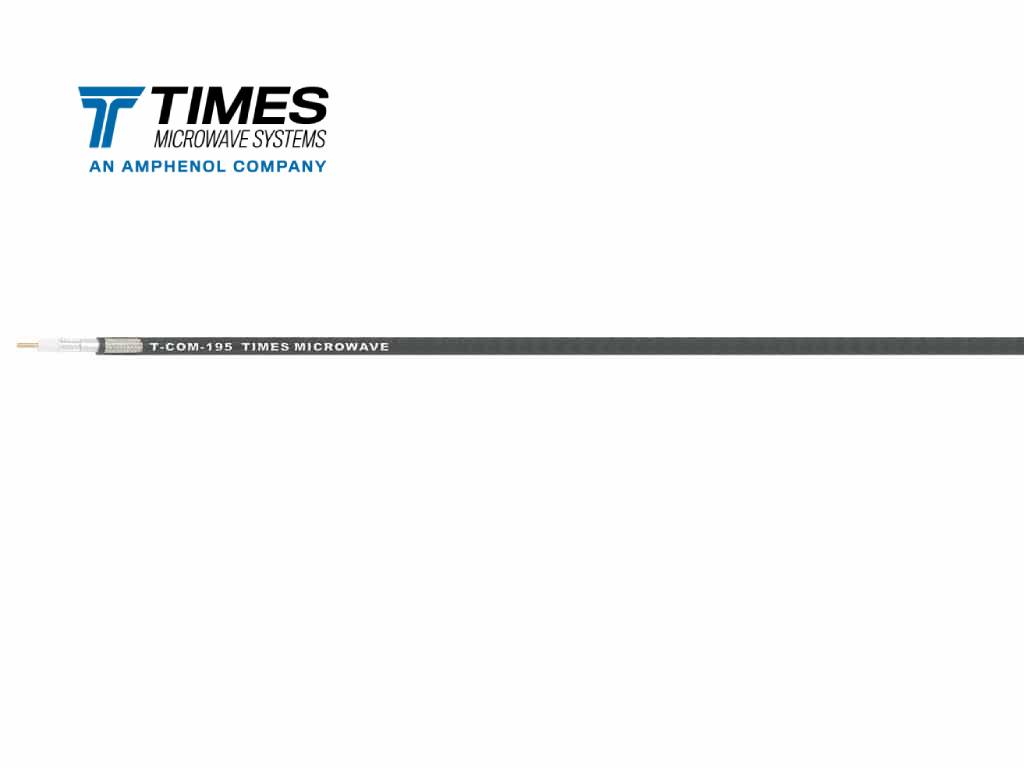

TCOM-195-FR
TCOM®-195-FR is a flexible, low-loss coaxial cable designed for durability and high shielding performance. Matching the attenuation of LMR®, it offers low PIM and rugged multi-layer shielding. Ideal for environments requiring movement after installation. The TCOM-195-FR variant features a fire-resistant, non-halogen CMR/MPR-rated (PCC-FT4) jacket.
Stock Code: 55012
TCOM-195 w/non-halogen FR jkt, listed CMR/MPR (PCC-FT4)
Inventory Status
| Distributor | Qty | Order |
Specifications
| Part NumberTCOM-195-FR |
| EnvironmentIndoor |
| JacketFRPE |
| Overall Diameter (mm)4.953 |
| Overall Diameter (in)0.195 |
| Weight Kg/m0.035 |
| Weight lb/ft0.035 |
| Operating Temp.°C (°F)
-40° to 85°C
(-40° to 185°F) |
| Min. Bend Radius (mm)12.7 |
| Min. Bend Radius (in)0.5 |
| Bending Moment (Nm)0.27 |
| Bending Moment (ft-lb)0.2 |
| Max Frequency (GHz)6 |
| Impedance (ohms)50 |
| Power Handling (DWV)1000 |
