TCA‑311901 is a high-temperature, low-loss coaxial cable tailored for aerospace, defense, navigation, and communication systems. With exceptional flexibility and robust mechanical resilience, it enables smooth routing through tight spaces while sustaining signal integrity. Engineered for collision‑avoidance and mission‑critical applications, this cable guarantees reliable, long-term performance in extreme and harsh environments.

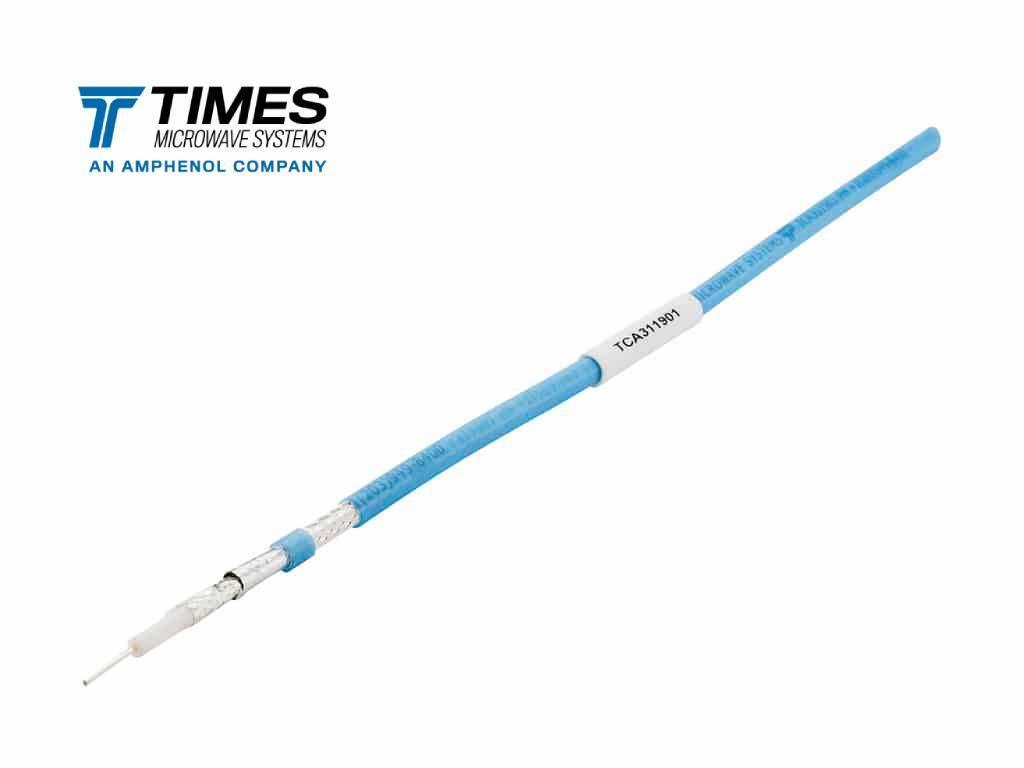

TCA311901 0.037" Solid SCCS , 0.195" FEP Jacket
| Part NumberTCA-311901 |
| EnvironmentIndoor/Outdoor |
| JacketFEP |
| Overall Diameter (mm)4.95 |
| Overall Diameter (in)0.195 |
| Weight Kg/m0.064 |
| Weight lb/ft0.043 |
| Operating Temp.°C (°F)
-55° to 200°C
(-67° to 392°F) |
| Min. Bend Radius (mm)25.4 |
| Min. Bend Radius (in)1 |
| Bending Moment (Nm) |
| Bending Moment (ft-lb) |
| Max Frequency (GHz)5 |
| Impedance (ohms)50 |
| Power Handling (DWV) |
