SiO2-141

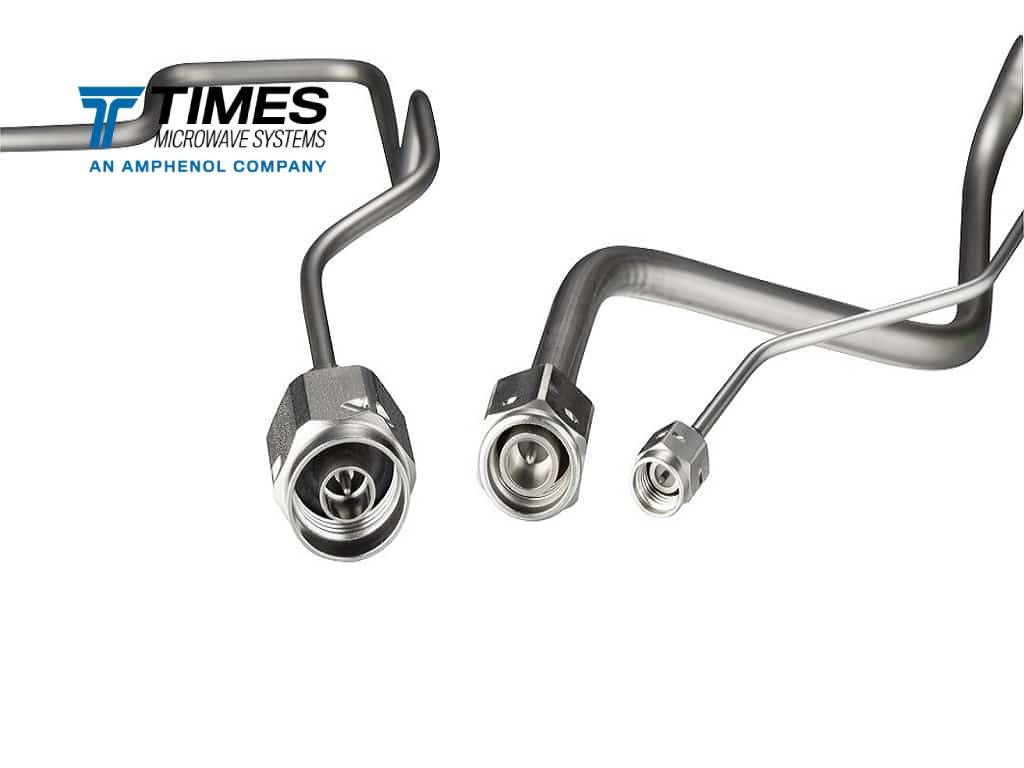

SiO2-141 semi-rigid cable assembly is engineered for high-performance phase stability in demanding environments. Ideal for aerospace, defense, and satellite systems, it features low-loss performance and a rugged SiO2 dielectric. SiO2-141 handles extreme temperatures, shock, and radiation with ease, making it the preferred solution for precision-critical, mission-ready RF and microwave interconnects.
Stock Code: AA-9789
SiO2-141
Request a Quote
Specifications
| Part NumberSiO2-141 |
| Environment |
| Jacket304L SS |
| Overall Diameter (mm)3.6322 |
| Overall Diameter (in)0.143 |
| Weight Kg/m0.0372 |
| Weight lb/ft0.025 |
| Operating Temp.°C (°F)
-270° to 1000°C
(-454° to 1832°F) |
| Min. Bend Radius (mm)12.7 |
| Min. Bend Radius (in)0.5 |
| Bending Moment (Nm) |
| Bending Moment (ft-lb) |
| Max Frequency (GHz)36 |
| Impedance (ohms)50 |
| Power Handling (DWV) |
Part Number Structure
Cable Details
