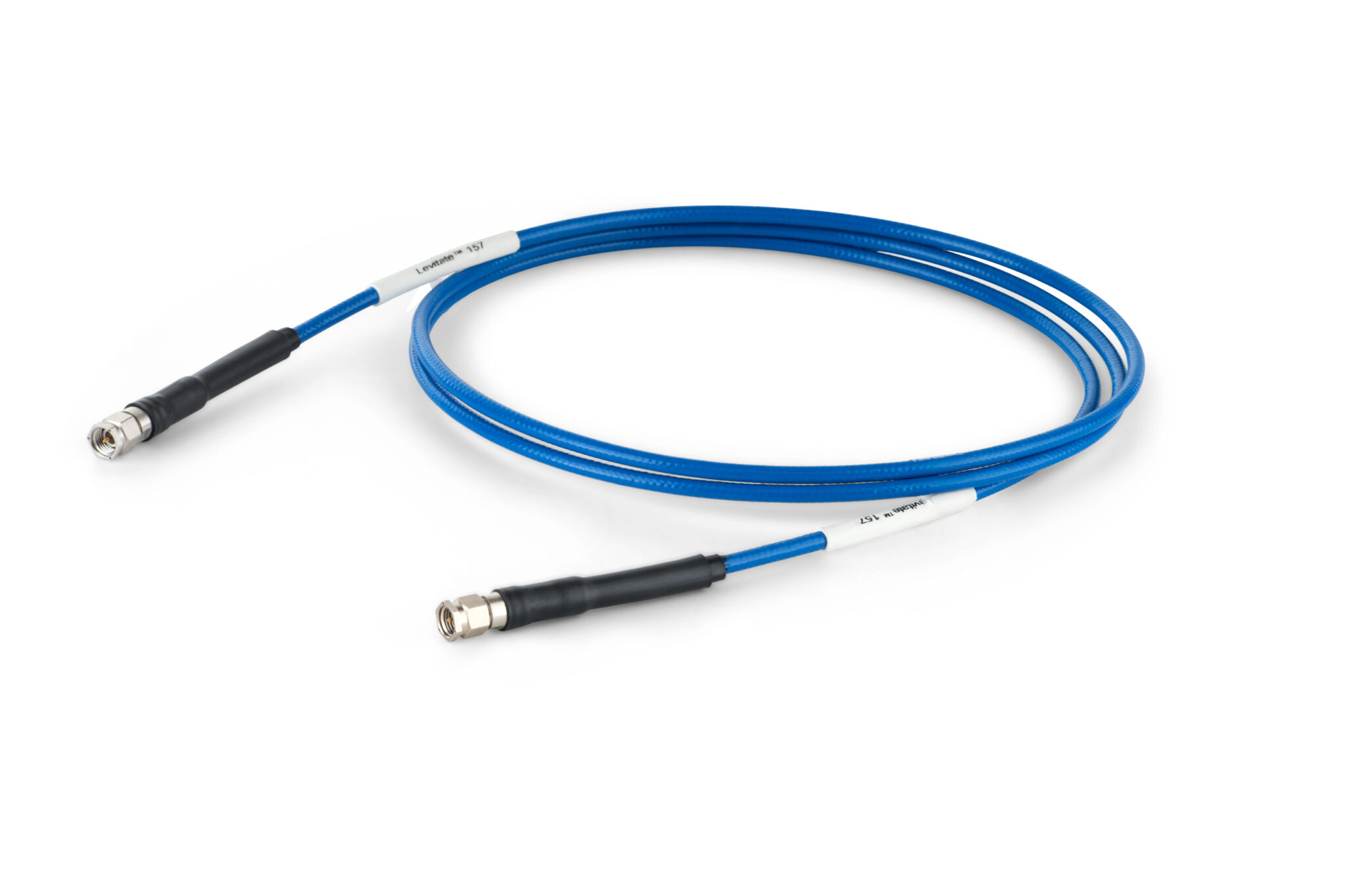

LVT-157
Levitate™ 157 is engineered to meet the modern demands of both military and commercial RF systems. Offering an ultra-lightweight construction with minimal signal loss, these assemblies are built to support critical RF runs connecting antennas to LRU’s. With a budget-friendly price and product available in distribution, Levitate is ideal for UAV platforms and all other applications requiring the perfect blend of cost, performance, and lead time.
Stock Code: LVT-157
LVT-157
Inventory Status
| Distributor | Qty | Order |
Specifications
| Part NumberLVT-157 |
| Environment |
| JacketETFE |
| Overall Diameter (mm)4.06 |
| Overall Diameter (in)0.16 |
| Weight Kg/m0.0298 |
| Weight lb/ft0.02 |
| Operating Temp.°C (°F)
-65° to 150°C
(-85° to 302°F) |
| Min. Bend Radius (mm)19.05 |
| Min. Bend Radius (in)0.75 |
| Bending Moment (Nm) |
| Bending Moment (ft-lb)-1 |
| Max Frequency (GHz)8 |
| Impedance (ohms)50 |
| Power Handling (DWV) |
Compatible with

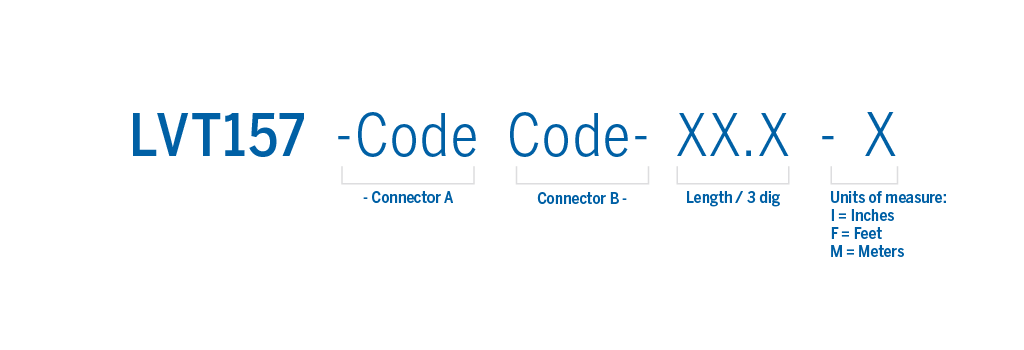

Part Number Structure

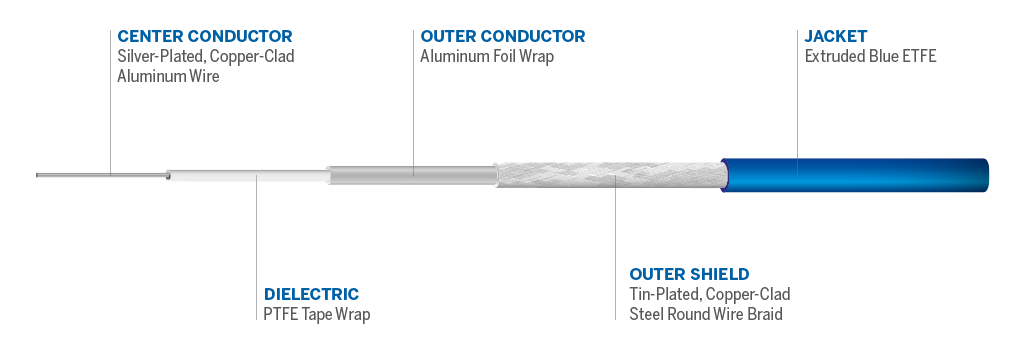

Cable Details
