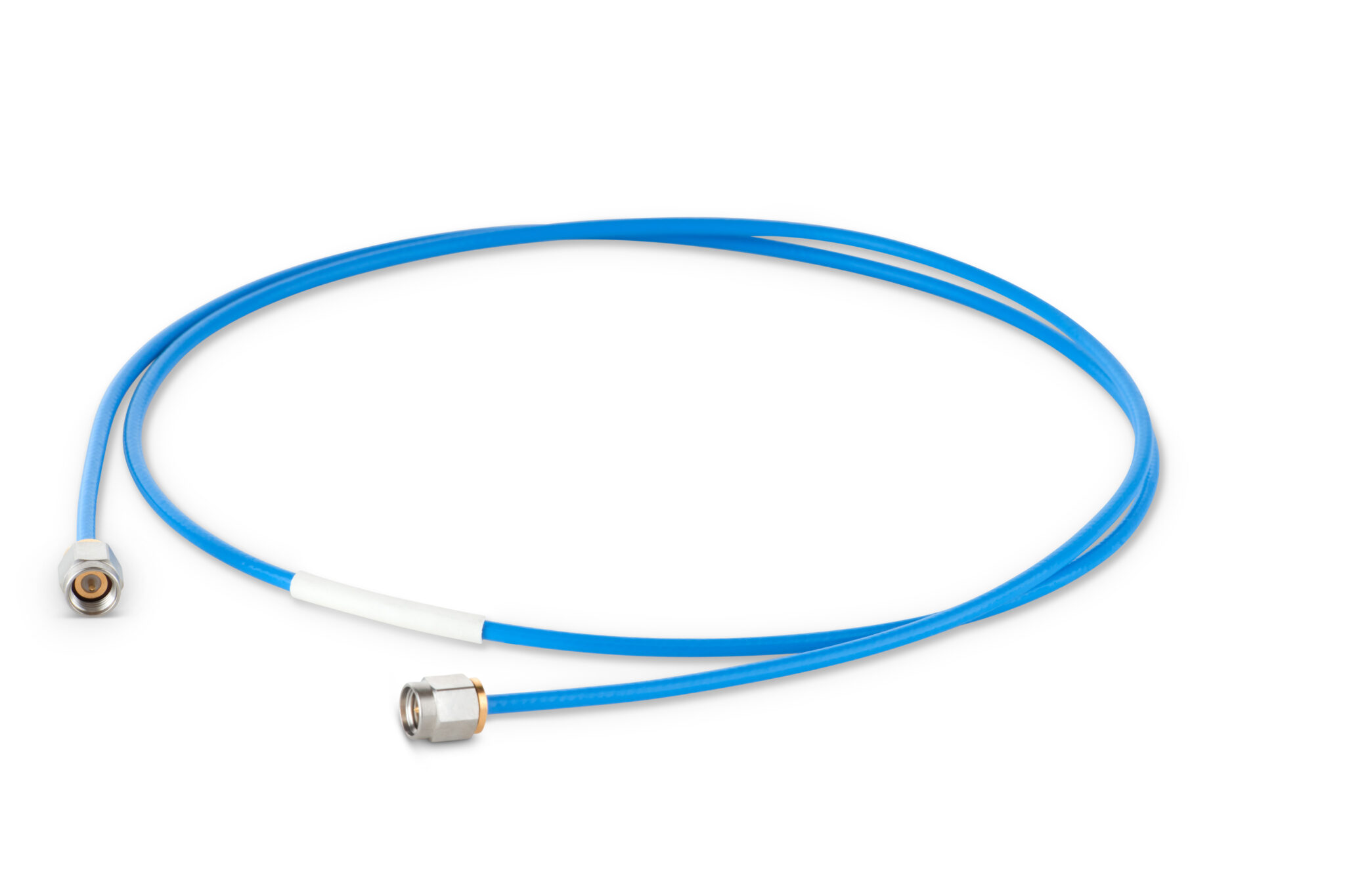

LVT-086
Levitate® 086 is engineered to meet the modern demands of both military and commercial RF systems. Offering an extremely flexible construction with minimal signal loss, these assemblies are built to support critical RF runs both inside and outside the box. With a budget-friendly price and product available in distribution, Levitate is ideal for UAV platforms and all other applications requiring the perfect blend of cost, performance, and lead time.
Stock Code: LVT-086
LVT-086
Inventory Status
| Distributor | Qty | Order |
Specifications
| Part NumberLVT-086 |
| Environment |
| JacketFEP |
| Overall Diameter (mm)2.743 |
| Overall Diameter (in)0.108 |
| Weight Kg/m0.0174 |
| Weight lb/ft0.0117 |
| Operating Temp.°C (°F)
-65° to 150°C
(-85° to 302°F) |
| Min. Bend Radius (mm)6.35 |
| Min. Bend Radius (in)0.25 |
| Bending Moment (Nm) |
| Bending Moment (ft-lb) |
| Max Frequency (GHz)40 |
| Impedance (ohms)50 |
| Power Handling (DWV) |
Compatible with
Part Number Structure

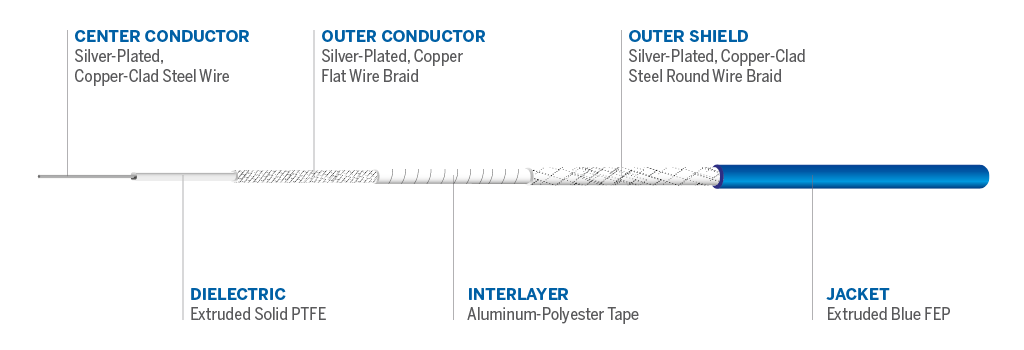

Cable Details
Resources
