LLSB-400
Times Microwave Systems® LLSB-400 (M17/223-00001) is a low-loss, low-smoke 50-ohm coaxial cable designed for high-performance RF transmission in safety-sensitive environments. With a gas-injected foam dielectric and robust shielding, it offers exceptional signal integrity, low attenuation, and superior EMI protection—ideal for public infrastructure, in-building wireless, and mission-critical communication systems.
Stock Code: 43112
M17/223-00001
Inventory Status
![]()
| In Stock | Qty | Order |
| Mouser Electronics | 656 | Buy |
Specifications
| Part NumberLLSB-400 |
| EnvironmentShipboard |
| JacketXLPE |
| Overall Diameter (mm)10.287 |
| Overall Diameter (in)0.405 |
| Weight Kg/m0.1697 |
| Weight lb/ft0.114 |
| Operating Temp.°C (°F)-22° to 176°C (-30° to 80°F) |
| Min. Bend Radius (mm) |
| Min. Bend Radius (in)1 |
| Bending Moment (Nm) |
| Bending Moment (ft-lb) |
| Max Frequency (GHz)2.5 |
| Impedance (ohms)50 |
| Power Handling (DWV)3000 |
Part Number Structure
Cable Details

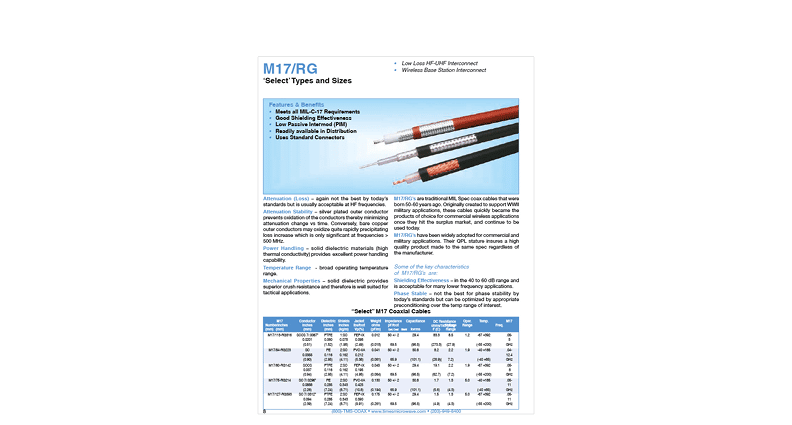

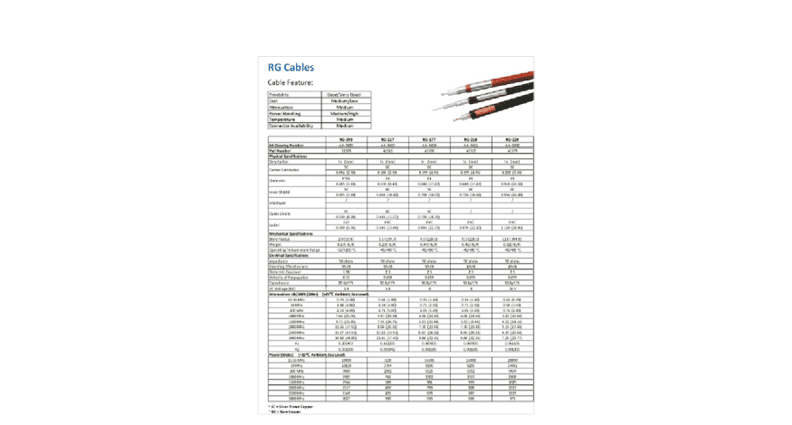

Documentation
