HP-600

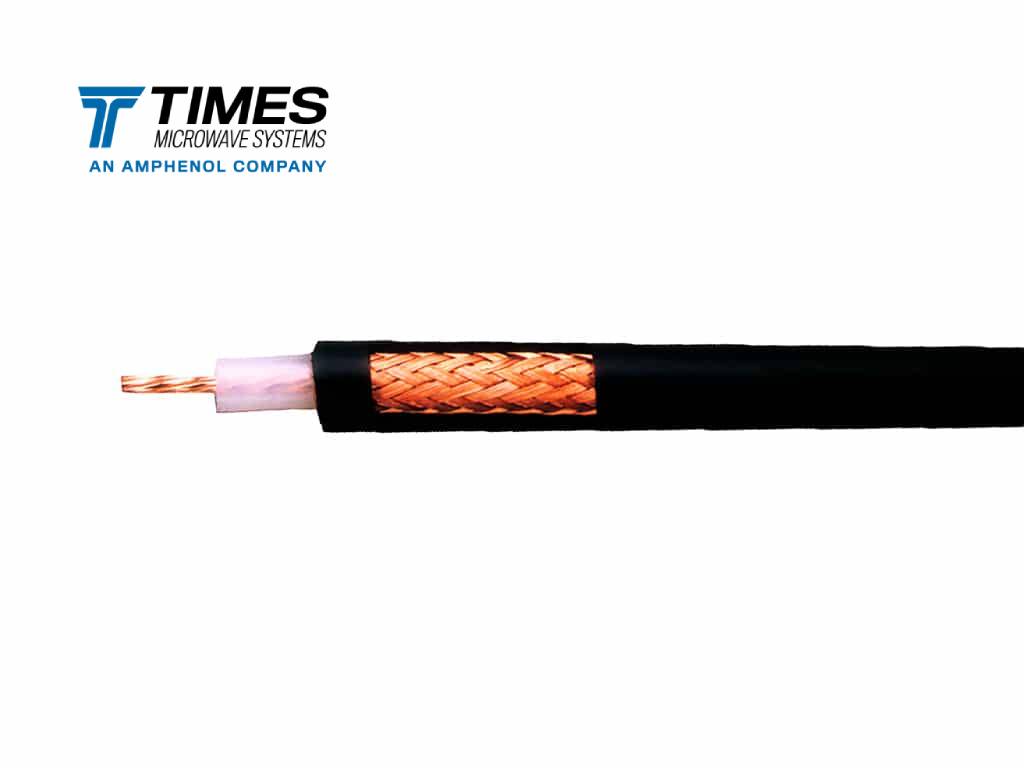

HP-600 coaxial cable is ideal for high-power, low-loss applications up to 18 GHz. Featuring a silver-plated copper outer conductor and solid polyethylene dielectric, it offers excellent shielding and signal integrity. Suitable for military, aerospace, and telecom uses, it handles peak power up to 23 kW reliably.
Stock Code: 51874
HP-600 high-power, coaxial cable
Inventory Status
| Distributor | Qty | Order |
Specifications
| Part NumberHP-600 |
| EnvironmentOutdoor |
| JacketFEP |
| Overall Diameter (mm)14.986 |
| Overall Diameter (in)0.59 |
| Weight Kg/m0.4837 |
| Weight lb/ft0.325 |
| Operating Temp.°C (°F)
-55° to 200°C
(-67° to 392°F) |
| Min. Bend Radius (mm)69.85 |
| Min. Bend Radius (in)2.75 |
| Bending Moment (Nm) |
| Bending Moment (ft-lb) |
| Max Frequency (GHz)6 |
| Impedance (ohms)50 |
| Power Handling (DWV)8300 |
