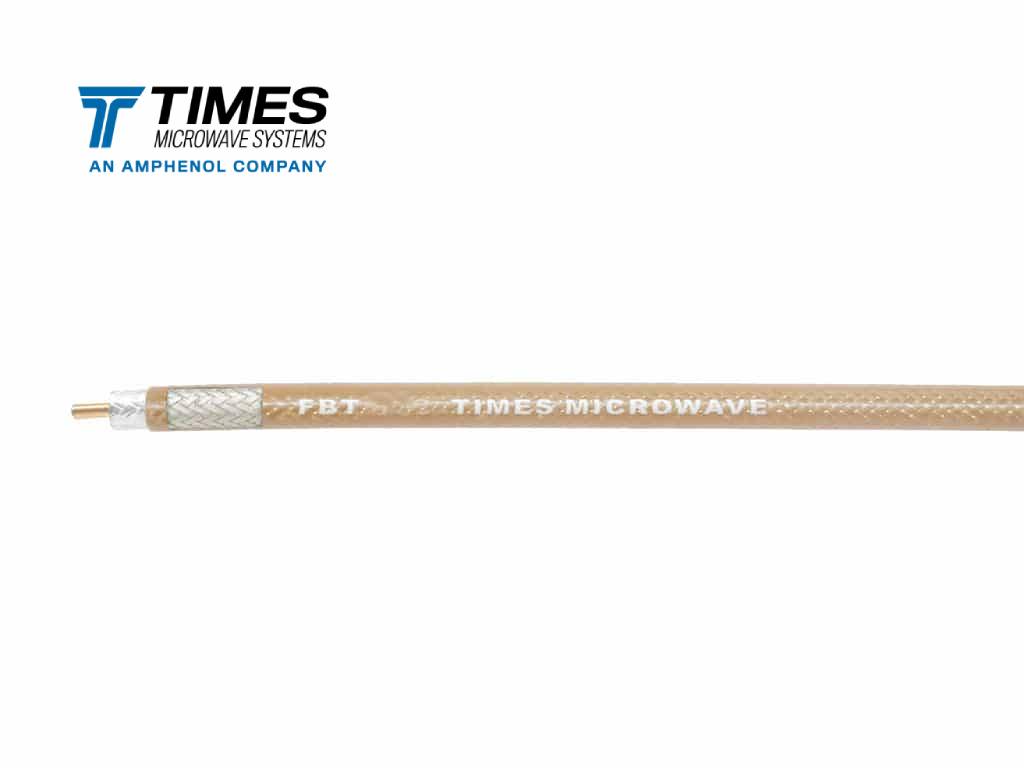

FBT-500
FBT-500 is a flexible, low-loss, high-power coaxial cable engineered for advanced applications such as semiconductor manufacturing, high-power radar systems, and laser technologies. With superior shielding and a plenum-rated fire-retardant jacket, it ensures reliable performance, low PIM, and safe installation in return-air plenums, dropped ceilings, and other critical indoor and outdoor RF environments.
Stock Code: 54172
Flexible low-loss, high-power, coaxial cable
Specifications
| Part NumberFBT-500 |
| Environment |
| JacketFEP |
| Overall Diameter (mm)11.938 |
| Overall Diameter (in)0.47 |
| Weight Kg/m0.25 |
| Weight lb/ft0.168 |
| Operating Temp.°C (°F)-55° to 150°C (-67° to 302°F) |
| Min. Bend Radius (mm)58.42 |
| Min. Bend Radius (in)2.3 |
| Bending Moment (Nm)2.37 |
| Bending Moment (ft-lb)1.75 |
| Max Frequency (GHz)6 |
| Impedance (ohms)50 |
| Power Handling (DWV)3000 |
